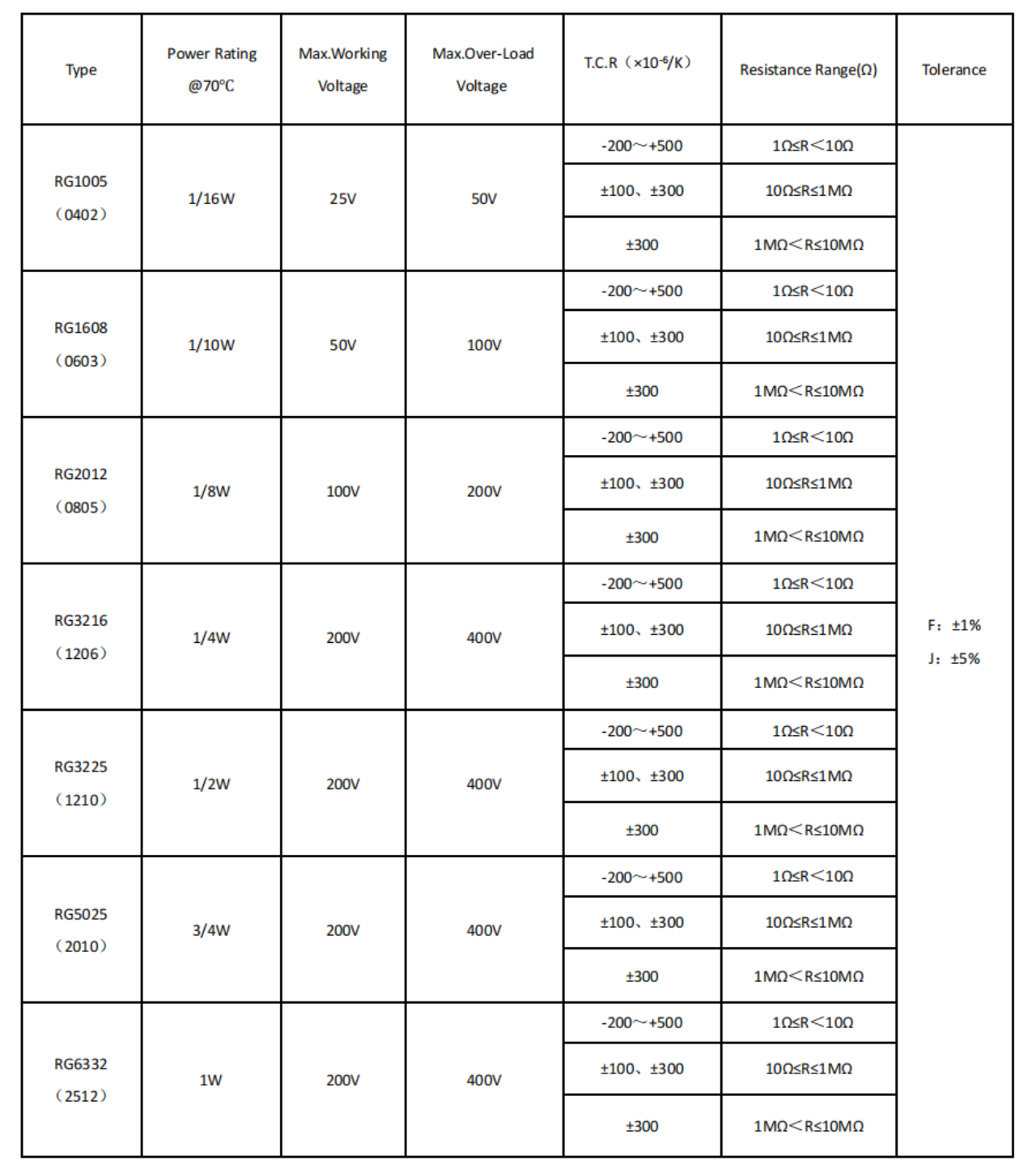

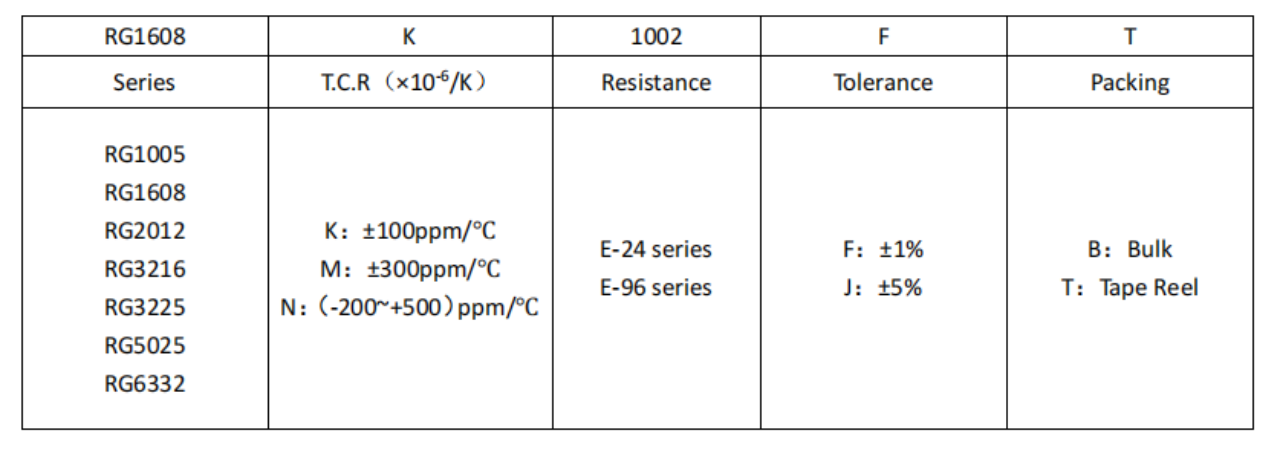

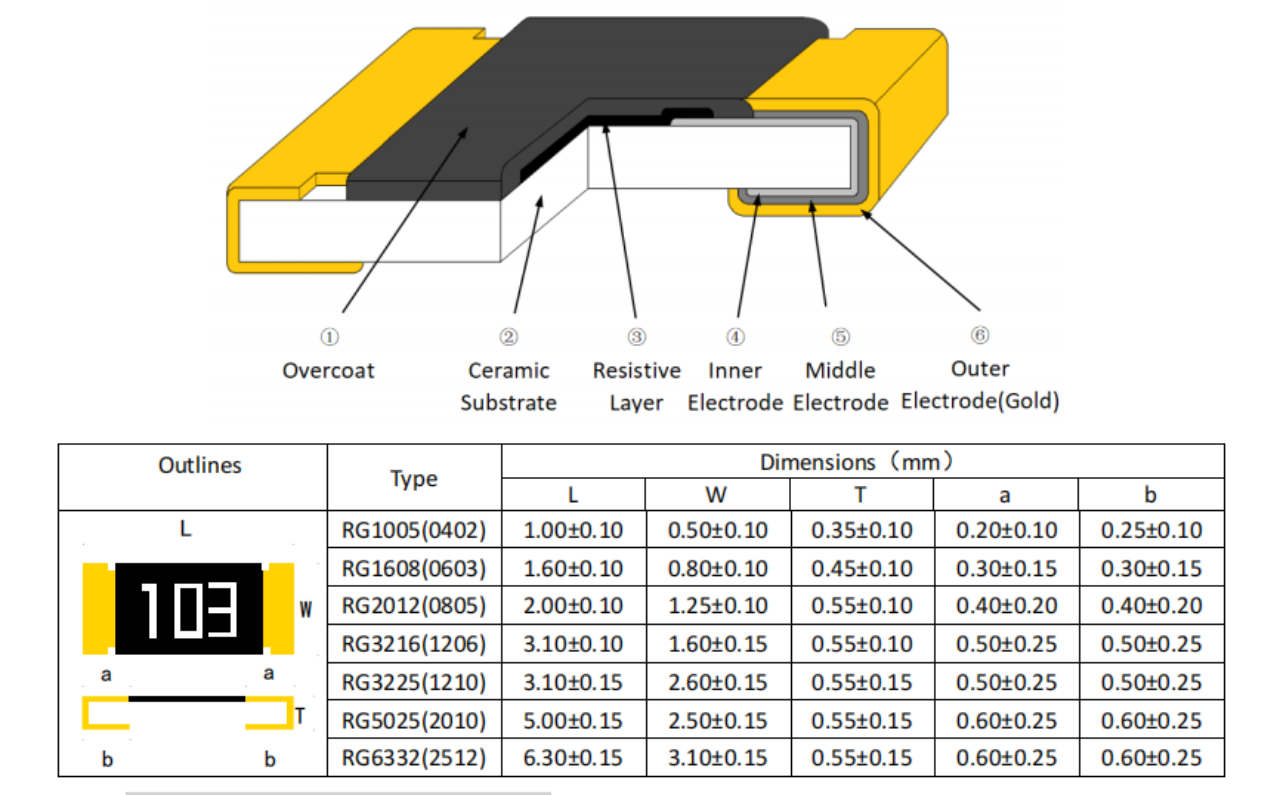

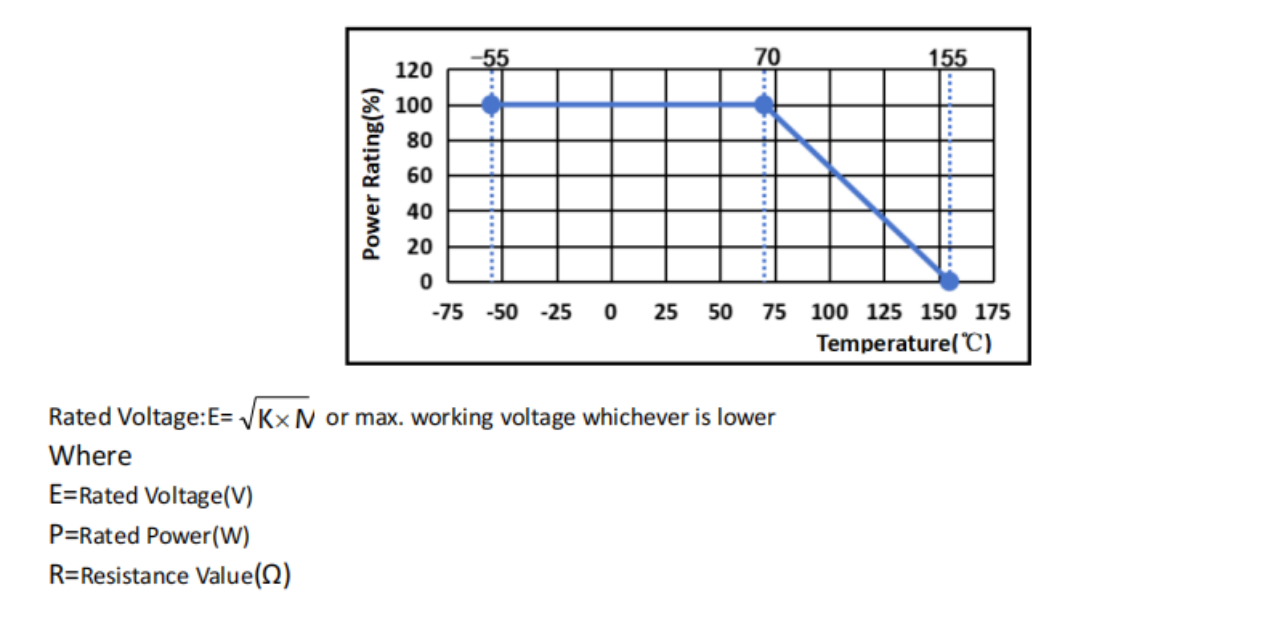

RG Series Gold Electrode (G Type) Thick Film Chip Resistors ( 0402–2512, 1Ω–10MΩ )

  RC Series Thick Film Chip Resistors are manufactured using thick-film technology and are available in a wide range of case sizes, including RC0402, RC0603, RC1005, RC1608, RC2012, RC3216, RC3225, RC5025, and RC6332.   The series offers power ratings from 1/32 W to 1 W at 70°C, with a resistance range from 1 Ω to 10 MΩ. Various resistance tolerances are available, including ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, and ±5%, depending on the model and resistance range. Multiple TCR options are also provided to meet different circuit requirements. Bulk and tape-and-reel packaging options are available.

RC Series Thick Film Jumper Chip Resistors are designed for jumper connections in surface-mount circuits. The series is available in multiple case sizes, from RC0402 (01005) to RC6332 (2512), with power ratings ranging from 1/32 W to 1 W at 70°C.   The maximum resistance is 50 mΩ, while the maximum current ranges from 0.5 A to 4 A depending on the case size. The series features Sn termination and is available in both bulk and tape-and-reel packaging.

RW Series Anti-Sulfurated Thick Film Chip Resistors feature a high-performance anti-sulfurated inner electrode and are available in sizes from RW1005 (0402) to RW6332 (2512).   The series offers resistance values from 1 Ω to 10 MΩ and power ratings from 1/16 W to 1 W at 70°C. Maximum working voltages range from 50 V to 250 V. The TCR is ±200 ppm/°C for resistance values from 1 Ω to below 10 Ω, and ±100 ppm/°C for resistance values from 10 Ω to 10 MΩ. Available resistance tolerances include ±1%, ±2%, and ±5%, with both bulk and tape-and-reel packaging options.

RW Series Anti-Sulfurated Thick Film Jumper Chip Resistors feature a high-performance anti-sulfurated inner electrode and are available in sizes from RW1005 (0402) to RW6332 (2512).   The series offers power ratings from 1/16 W to 1 W at 70°C, with maximum current ratings ranging from 1 A to 4 A depending on the size. The maximum resistance is 50 mΩ. Sn termination is specified, with both bulk and tape-and-reel packaging options available.

RC Series Double Power Thick Film Chip Resistors are available in sizes from RC1005 (0402) to RC6332 (2512), with power ratings ranging from 1/8 W to 2 W at 70°C.   The series offers resistance values from 1 Ω to 10 MΩ and maximum working voltages from 50 V to 250 V. For resistance values from 1 Ω to below 10 Ω, TCR options include ±200 ppm/°C and -200 to +500 ppm/°C. For resistance values from 10 Ω to 10 MΩ, TCR options include ±100 ppm/°C and ±300 ppm/°C. Resistance tolerances of ±1% and ±5% are available, with both bulk and tape-and-reel packaging options.

RP Series High Power Thick Film Chip Resistors are available in 1206, 2512, and 2525 sizes, with power ratings ranging from 1 W to 6 W at 70°C.   The series covers resistance values from 1 Ω to 6.2 kΩ, depending on the model and power rating. TCR options include ±100 ppm/°C and ±300 ppm/°C, with resistance tolerances of ±5%, ±10%, and ±20%. Both bulk and tape-and-reel packaging options are available.

RS Series Thick Film Chip Resistors are available in sizes from 0402 to 2512, with normal, double, and triple power options depending on the model. Power ratings range from 0.0625 W to 2 W at 70°C.   The series covers resistance values from 1 Ω to 1 MΩ, with maximum working voltages ranging from 50 V to 250 V. TCR is ±200 ppm/°C for resistance values from 1 Ω to below 10 Ω and ±100 ppm/°C for resistance values from 10 Ω to 1 MΩ. Available resistance tolerances include ±5%, ±10%, and ±20%. Bulk and tape-and-reel packaging options are available.

RCL Series Strip Low Ohmic Thick Film Chip Resistors are available in sizes from 0603 to 2512, with power ratings ranging from 1/10 W to 1 W at 70°C.   The series covers resistance values from 10 mΩ to 910 mΩ, depending on the size, with limiting element currents ranging from 1.41 A to 10 A. Maximum overload current ranges from 3.52 A to 25 A. Resistance tolerances of ±1%, ±2%, and ±5% are available for resistance values of 100 mΩ and above, while values below 100 mΩ are available with ±5% tolerance. Both bulk and tape-and-reel packaging options are available.
