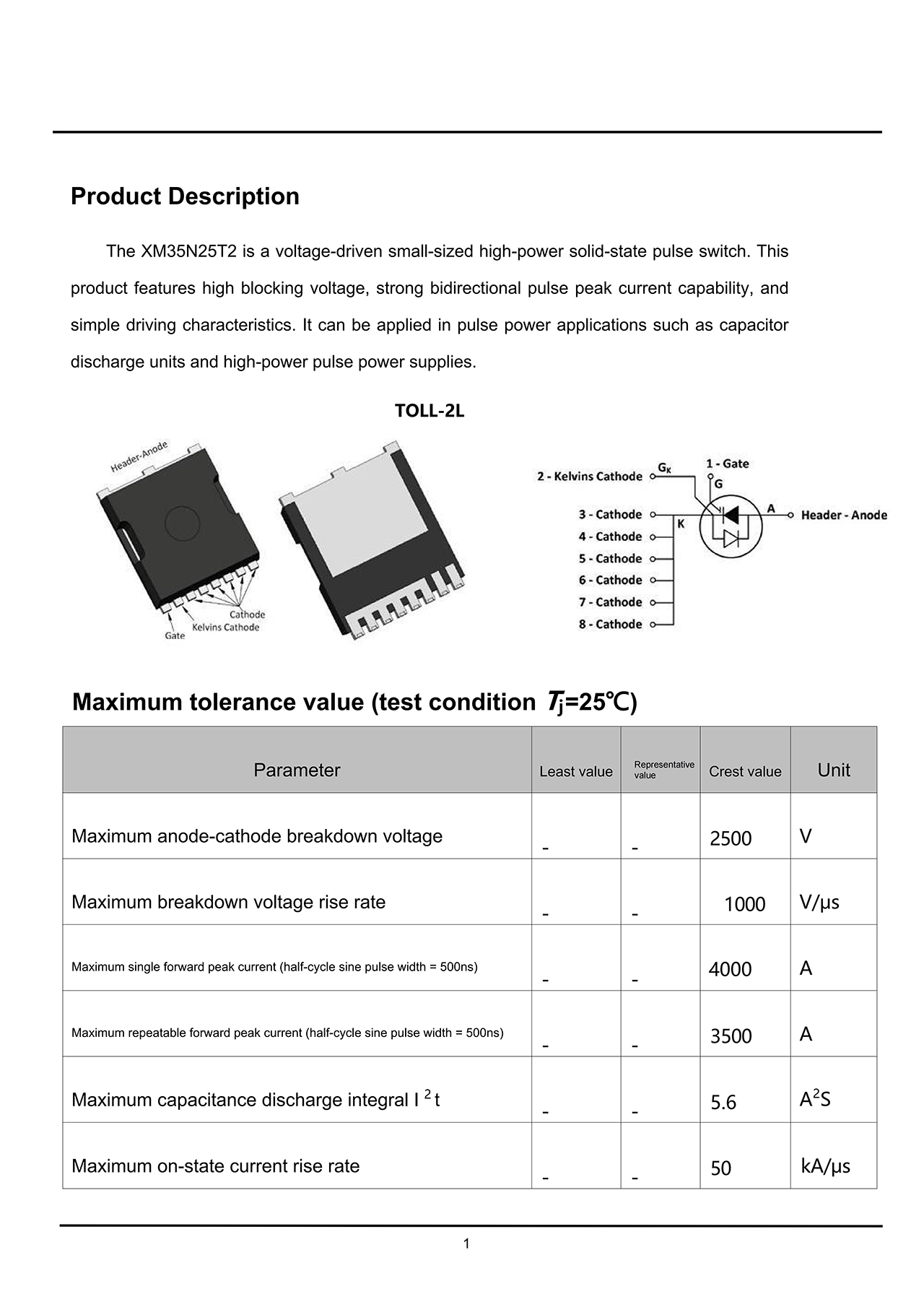

Product Description
XM35N25T2 is a voltage-driven, small-sized, high-power solid-state pulse switch. This product features a high blocking voltage, strong forward and reverse pulse peak current capability, and simple drive requirements. It can be used in pulse power applications such as capacitor discharge units and high-power pulse power supplies.

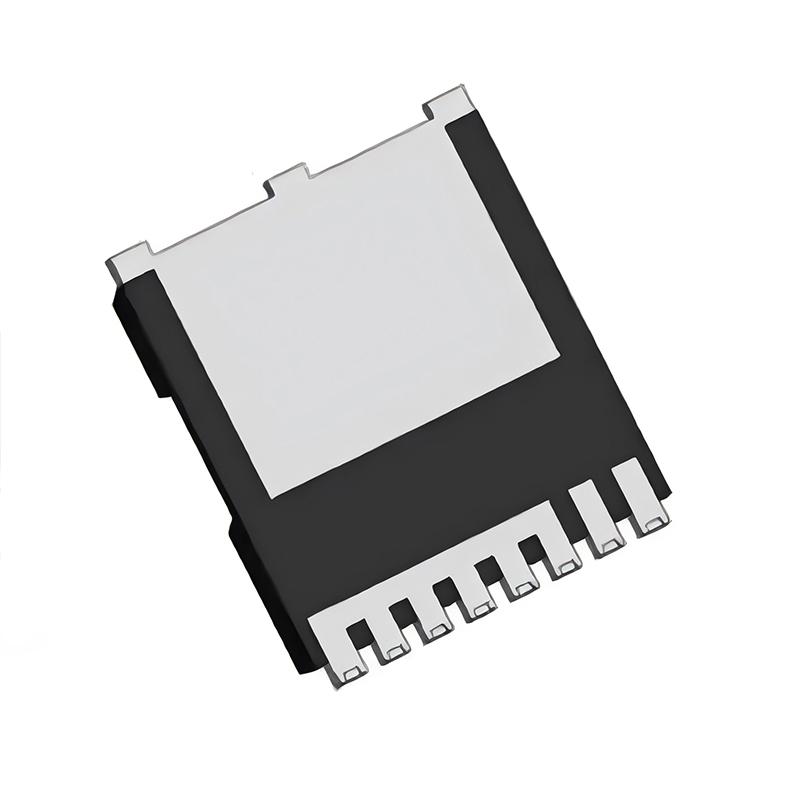

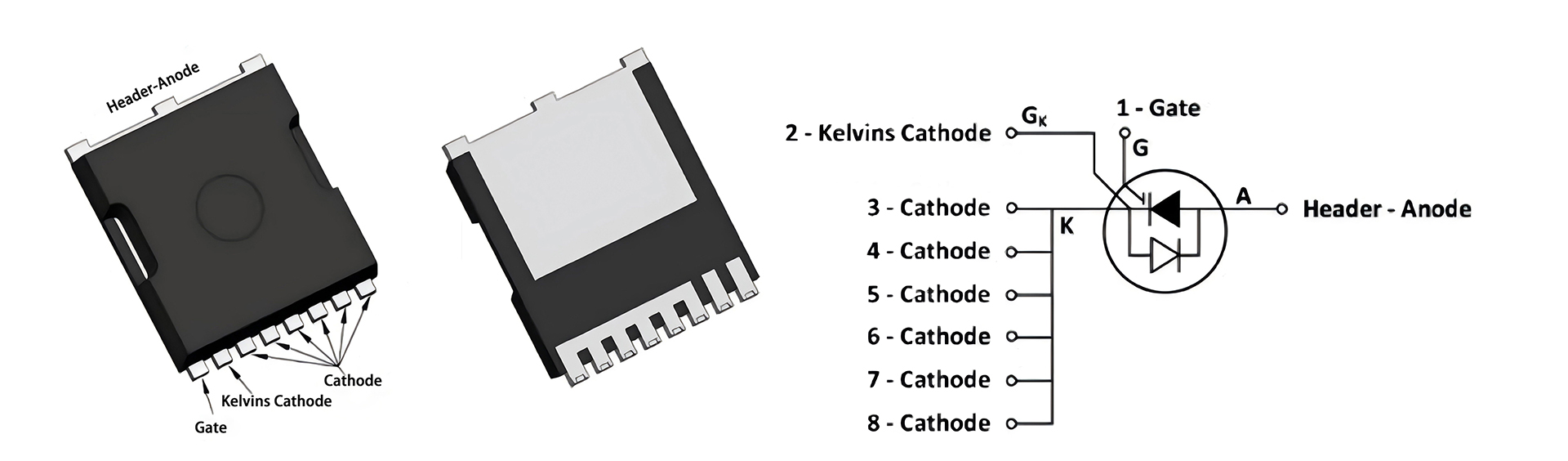

Views and internal schematic diagrams：TOLL-2L
Specification
|
Product Mode
|
Quality Grades
|
Parameter
|
Value
|
Unit
|
Package
|
Packaging
|
|
XM35N25T2
|
Industrial | VDRM | 2500 | V |
TOLL-2L
|
Tape and Reel
|
| ITSM@25℃ | 3500 | A | ||||
|
VGK(th)@Typ.
|
6 | V |
