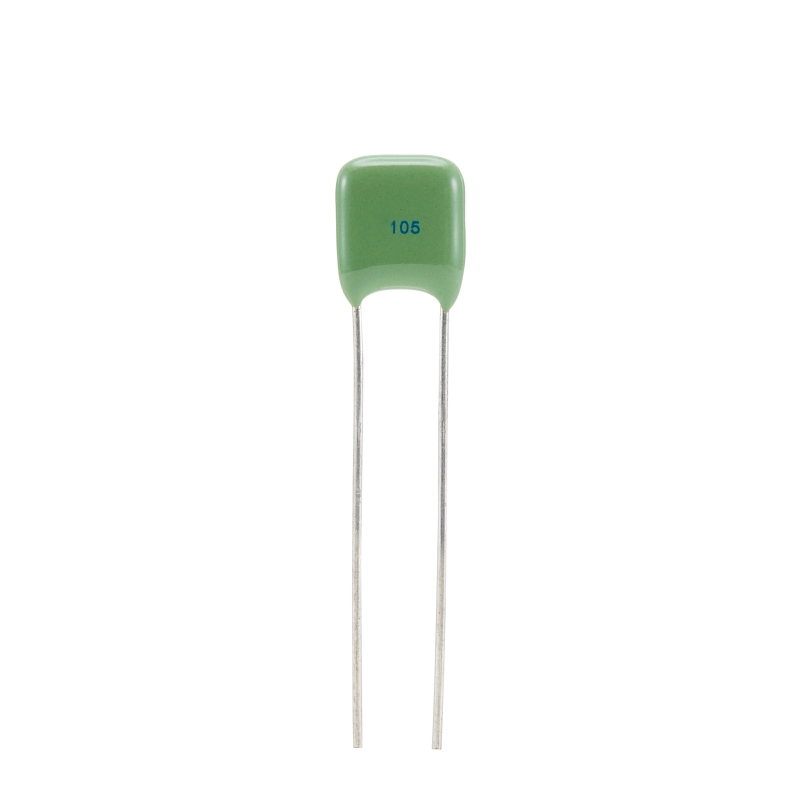

CC4 Series Radial Leads Ceramic Capacitor C0G

Lead-free terminations, RoHS and Reach Compliant



Features

Torch brand Radial Leads Capacitors are of small size and light weight. They are non-polar and thus are easy to install. The C0G dielectric is classified as class I material, which is considered to be highly “stable” and is temperature compensating, with low loss in a circuit.  C0G barely performs any variation in capacitance over time and voltage change, and its capacitance remains virtually unchanged in response to ambient temperature. Ceramic capacitors using this type of dielectric feature a working temperature of -55 to +125, with capacitance change limited to ±30 ppm/ºC.



Ordering Information



CC4

-  0805

-  CG

-  50V

-  100pF

-  J

- H

- L

-   T

Series

Case Size

Dielectric

Rated Voltage

Capacitance

Capacitance Tolerance

Wire Form

Packaging

Leg

form

Leg

length

CC4-

Class I Ceramic

0805

1206

1210

1812

2225

C0G

25V   50V

100V  200V

250V  500V

630V  1KV

2KV   3KV

Refer to Capacitance and Rated Voltage Range

B=±0.10pF

C=±0.25pF

D=±0.5pF

F=±1%

G=±2%

J=±5%

L

H

See packaging style

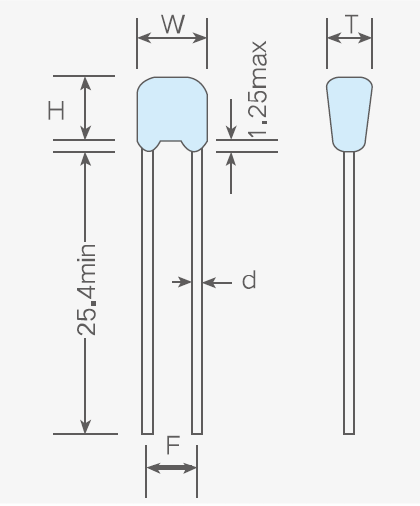

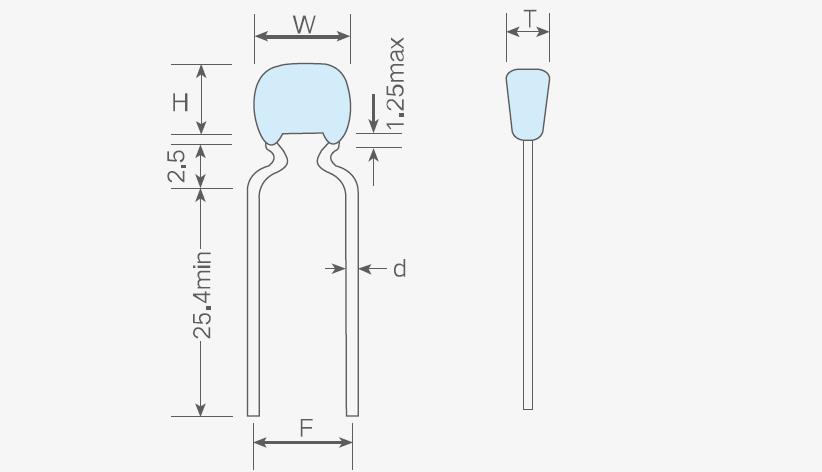

Dimensions













Unit:mm

Size Code

0805

0805

1206

1210

1812

2225

Wmax

4.85

4.85

5.86

5.86

7.14

8.62

Hmax

4.16

4.16

4.36

4.80

6.00

8.62

Tmax

3.70

3.70

4.10

4.20

4.20

4.20

F

2.54±0.1

5.08±0.1

5.08±0.1

5.08±0.1

5.08±0.12

5.08±0.12

d

0.5±0.05

0.5±0.05

0.5±0.05

0.5±0.05

0.6±0.05

0.6±0.05

Length(Lmin)

25.4

25.4

25.4

25.4

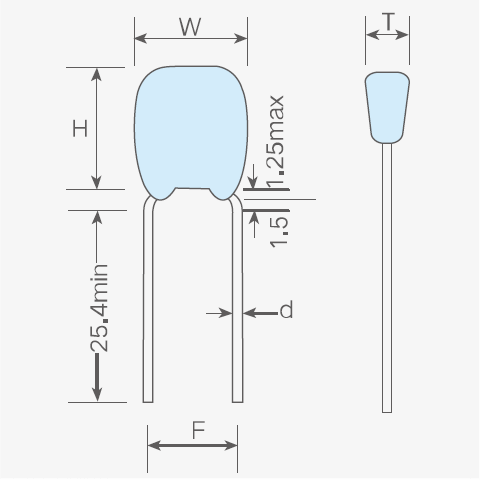

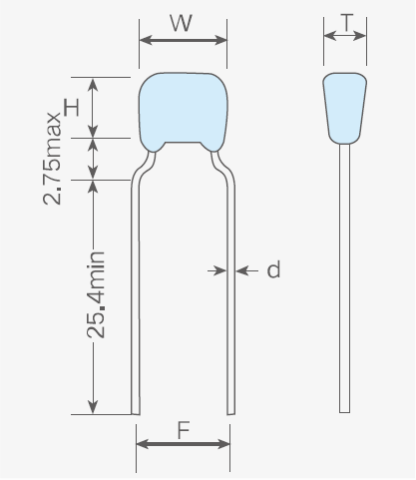

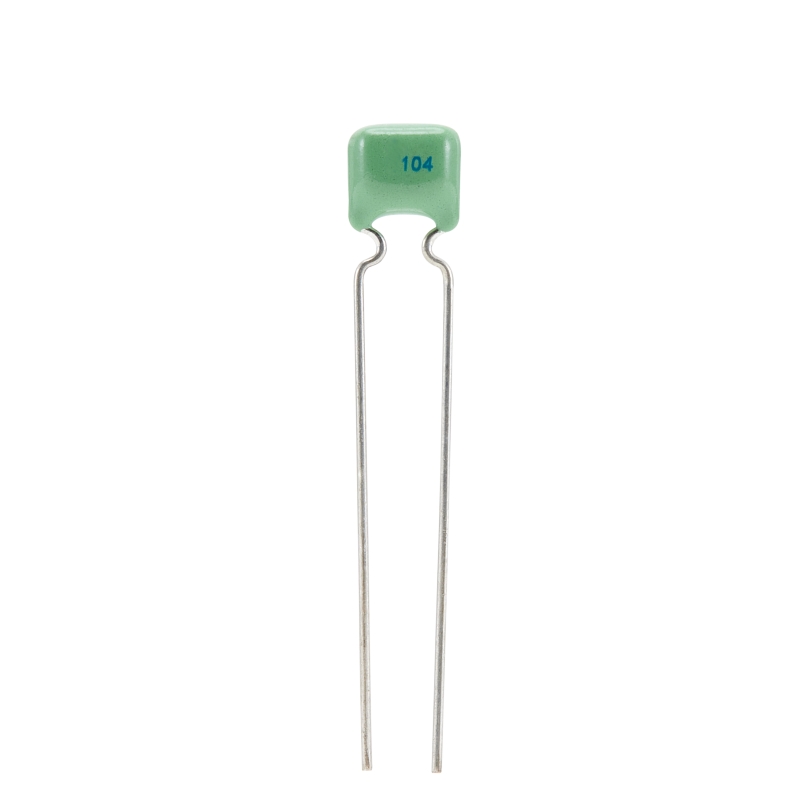

Appearance

Wire Form

L

H

H

H



Electrical Characteristics

Item

Specification Limits

Measuring Conditions

Operating Temperature Range

C0G

-55℃ to +125℃

X7R

X5R

-55℃ to +85℃

Capacitance

Within specified tolerance

Q

CG

CR≤30 pF: Q≥400+20CR

CR30 pF: Q≥1000

CG:

CR≤1000PF 1MHz±10% 0.5V-5V

CR>1000pF 1kHz±10% 1V±0.2V



X7R & X5R:

CR≤10μF 1kHz±10%  1V±0.2V

CR>10μF 120Hz±10 0.5V±0.2V

X7R

X5R

UR≥50V , tgδ≤3.5%;

25V≤UR<50V , tgδ≤5.0%;

16V≤UR<25V , tgδ≤7.0%;

4V≤UR<16V , tgδ≤10%;

※Note:

CR≥1μFtgδ≤10 %;

Insulation Resistance

10000MΩ or 100MΩ·μF whichever is less

Rated voltage shall be applied within following conditions:

UR≤500V  UR

UR>500V  500V

Voltage applying time shall be 60±5 seconds, charging and discharging current shall be 50mA or less.

Dielectric Strength

No breakdown or visual defects

250% of DC rated voltage for 5 seconds, charging and discharging current shall be 50mA or less.

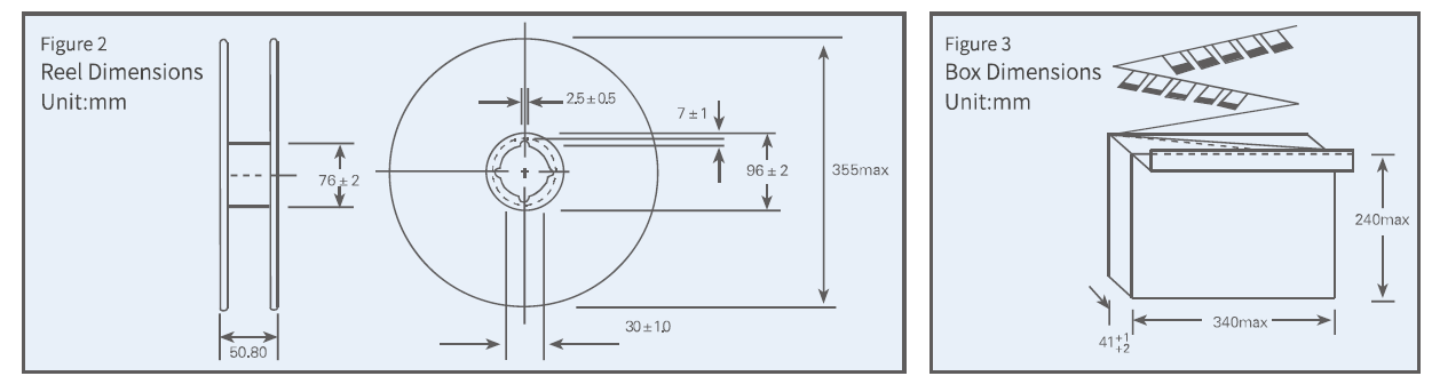

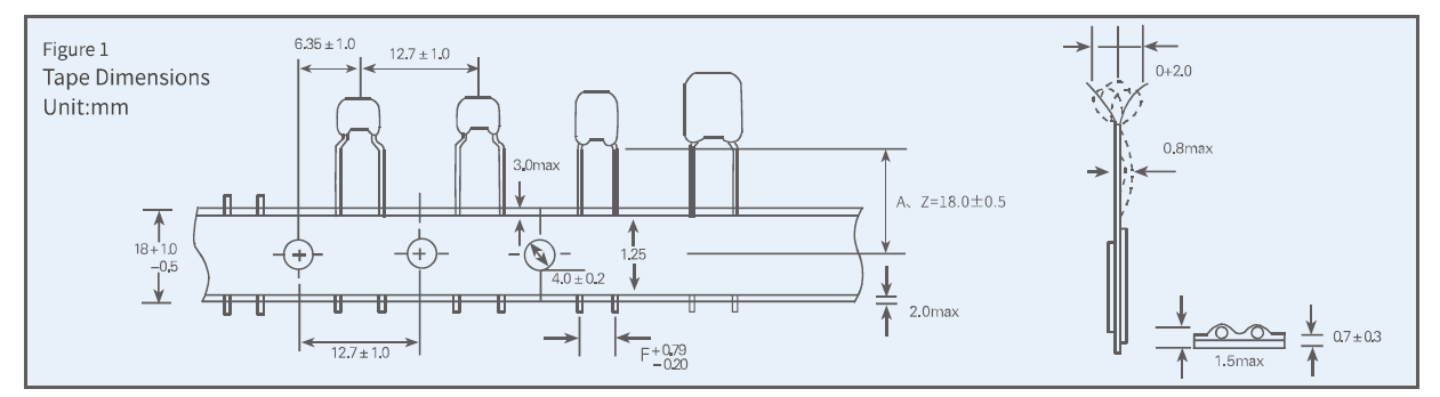

Packaging Style

T=bulk, A=tape/reel, B=tape/ammo



Storage

To maintain the solderability of terminal electrodes and to keep packaging materials in good condition, measures should be taken to control temperature and humidity.

*Recommended conditions:

    • Temperature: Below 40
    • Humidity: Below 70% RH

Even under ideal storage conditions, solderability of capacitors is deteriorated as time passes, so capacitors shall be used within 12 months from the time of delivery. When exceeding the above period, please check solderability before applying the capacitors to your circuit.



Applications

Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression, blocking, and energy storage.



    • Typical Fields of Application:
