Molded Surface Mount Ceramic Capacitor

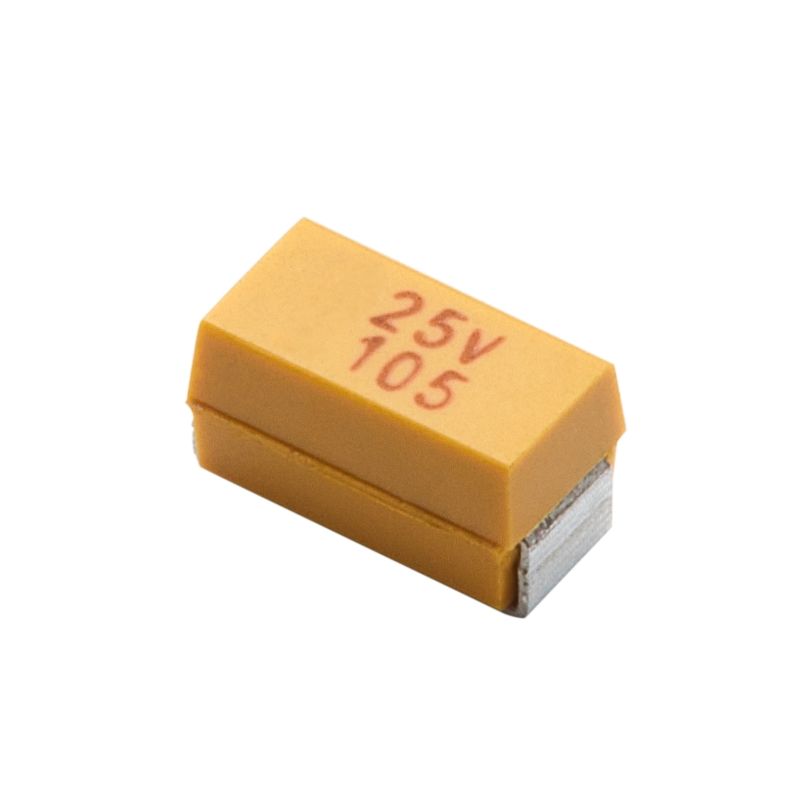

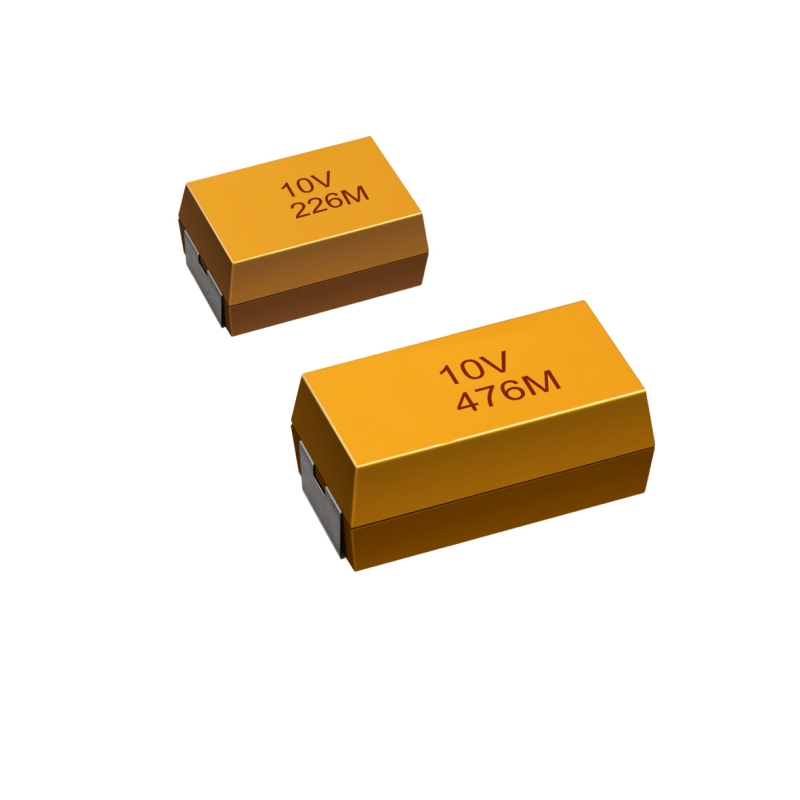

Molded Surface Mount Ceramic Capacitor

Lead-free terminations, RoHS and Reach Compliant

Features

Capacitance ranging from 0.5pF to 0.47μF

Voltage rating of 25V - 500V

Size B, C, G, D



Ordering Information

CT45

-G

-X7R

-50V

106

-M

-T

Series

Case size

Dielectric

Rated voltage

Capacitance

Capacitance tolerance

Packaging

CT45

B

C

G

D

X7R

25V

35V

50V

100V

200V

500V

First two digits represent significant figures. Third digit specifies number of zeros.

Example:

106=10000000pF

=10μF

K=±5%

M=±10%

T=Bulk

E=7” Reel

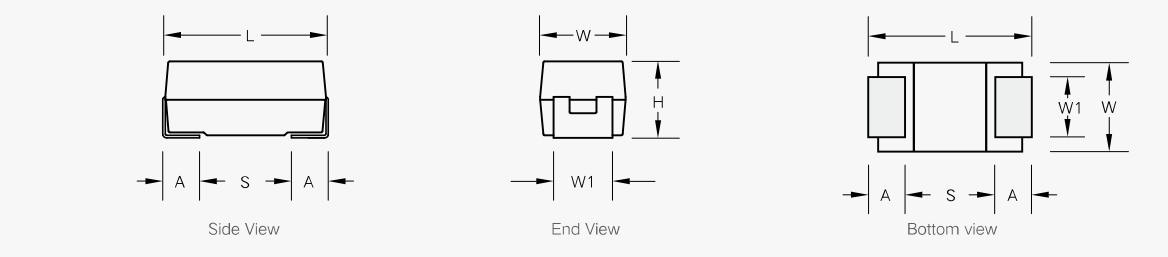

Dimensions











Unit:mm

Size Code

L±0.20

W

+0.20

-0.10

H

+0.30

-0.10

W1±0.20

A

+0.30

-0.30

A

3.20

1.60

1.60

1.20

0.80

B

3.50

2.80

1.90

2.20

0.80

C

6.00

3.20

2.60

2.20

1.30

G

5.30

4.00

6.90

2.40

1.40

D

7.30

4.30

2.90

2.40

1.30





Electrical Characteristics

Item

Specification Limits

Measuring Conditions

Operating Temperature Range

X7R

-55℃ to +125℃

X5R

-55℃ to +85℃

Capacitance

Within specified tolerance

Dissipation Factor

X7R

UR≤50V , tgδ≤3.5%;

50V<UR≤500V , tgδ2.5%;

CR≤10μF    1kHz±10%     1V±0.2V

CR>10μF    120Hz±10%    0.5V±0.2V

X5R

UR≤50V, tgδ≤10%;

50V<UR100V , tgδ≤3.5%;

100V<UR≤500V , tgδ2.5%;

Insulation Resistance

4000MΩ or 100MΩ·μF whichever is less

Rated voltage shall be applied for 2 minutes, charge and discharge current shall be limited to 50mA (max).

Dielectric Strength

No breakdown or visual defects

Rated voltage shall be applied within following conditions for 5 seconds:

UR<500V  2.5UR

UR=500V  1.5UR

Charging and discharging current shall be 50mA or less.

Temperature Characteristics

±15%

Capacitance change with reference to +25





Storage

To maintain the solderability of terminal electrodes and to keep packaging materials in good condition, measures should be taken to control temperature and humidity.

Recommended conditions:

l  Temperature: Below 40

l  Humidity: Below 70% RH

Even under ideal storage conditions, solderability of capacitors is deteriorated as time passes, so capacitors shall be used within 12 months from the time of delivery. When exceeding the above period, please check solderability before applying the capacitors to your circuit.



Applications

Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression, blocking, and energy storage.



-----------------------------
