High-Voltage High-Capacitance Microwave Ceramic Chip Capacitors (1nF-10μF, Up to 150V) CC1101SV / CT1101SV Series

Product Description

Mainly used in high-voltage filtering, bypass etc..

Small size and high capacitance (1 nF~10 μF), with good capacitance temperature coefficient and high operating voltage up to 100 V.

Capacitance :
1 nF ~ 10 μF
Voltage :
Up to 150V
Tolerance :
A: ±0.05 pF; B: ±0.1 pF; C: ±0.25 pF; D: ±0.5 pF; F: ±1.0%; G: ±2.0%; J: ±5.0%; K: ±10%; L: ±15%; M: ±20%; S: -20%~+50%; Z: -20%~+80%
Size :
15 ~ 100
Dielectric :
Microwave Ceramic
Lead Time :
8-12 weeks

Inquiry now

Product Details

I. Applications

mainly used inhigh-voltage filtering, bypass etc..

II. Features

◼ Small size and high capacitance (1 nF~10 μF);

◼ Good capacitance temperature coefficient;

◼ High operating voltage (up to 100 V).

III. Part Numbering Rules

QJ – CT1101SV – 35 – BY – 50V – 103 – M – C – C

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

① indicates quality grade: QJ is enterprise military grade; J is general military grade; G is Seven-Special grade;

no code indicates industrial grade.

② indicates product model and structure: CC1101SV indicates a Class 1 high-voltage, high-capacitance capacitor;

CT1101SV indicates a Class 2 ceramic high-voltage, high-capacitance capacitor.

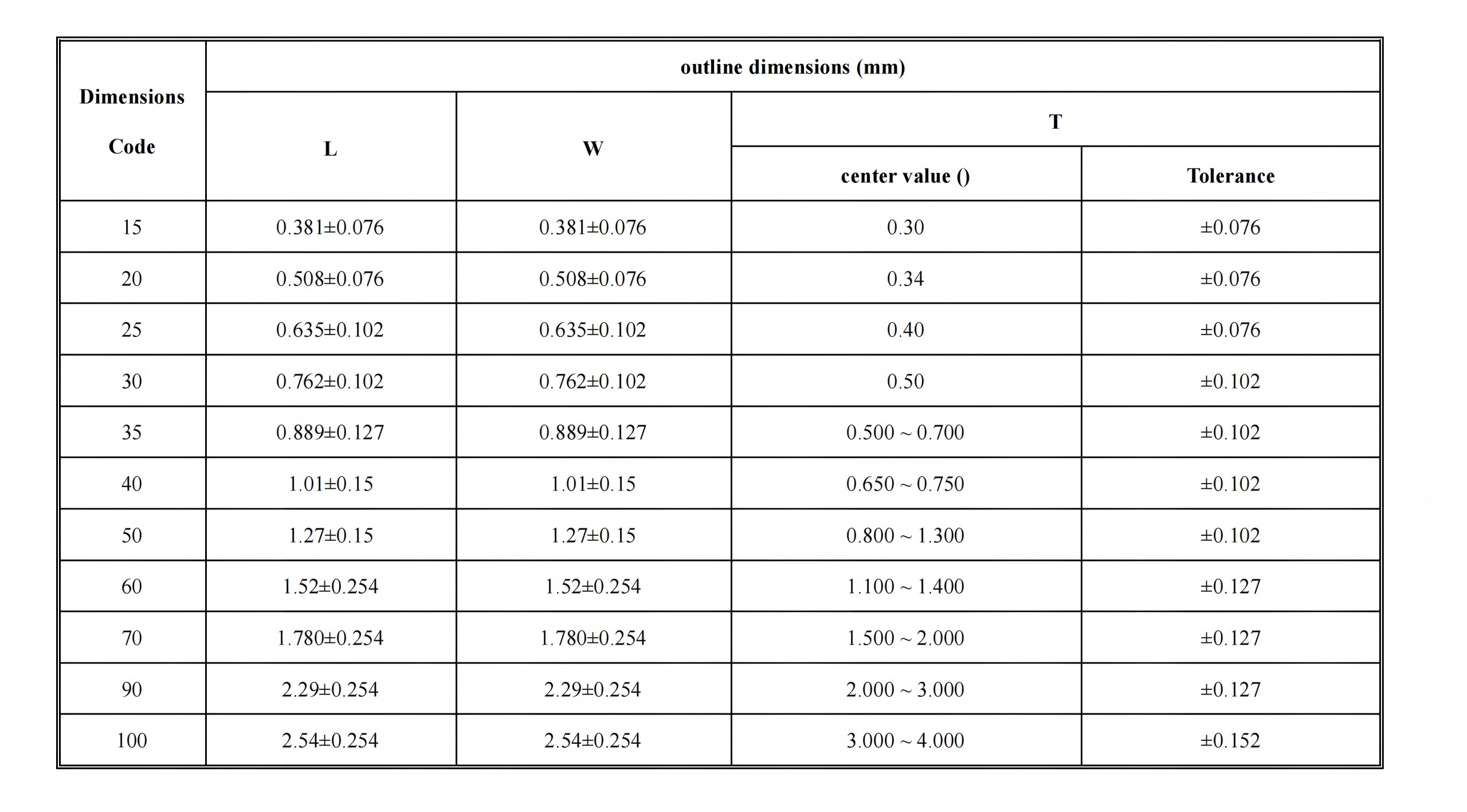

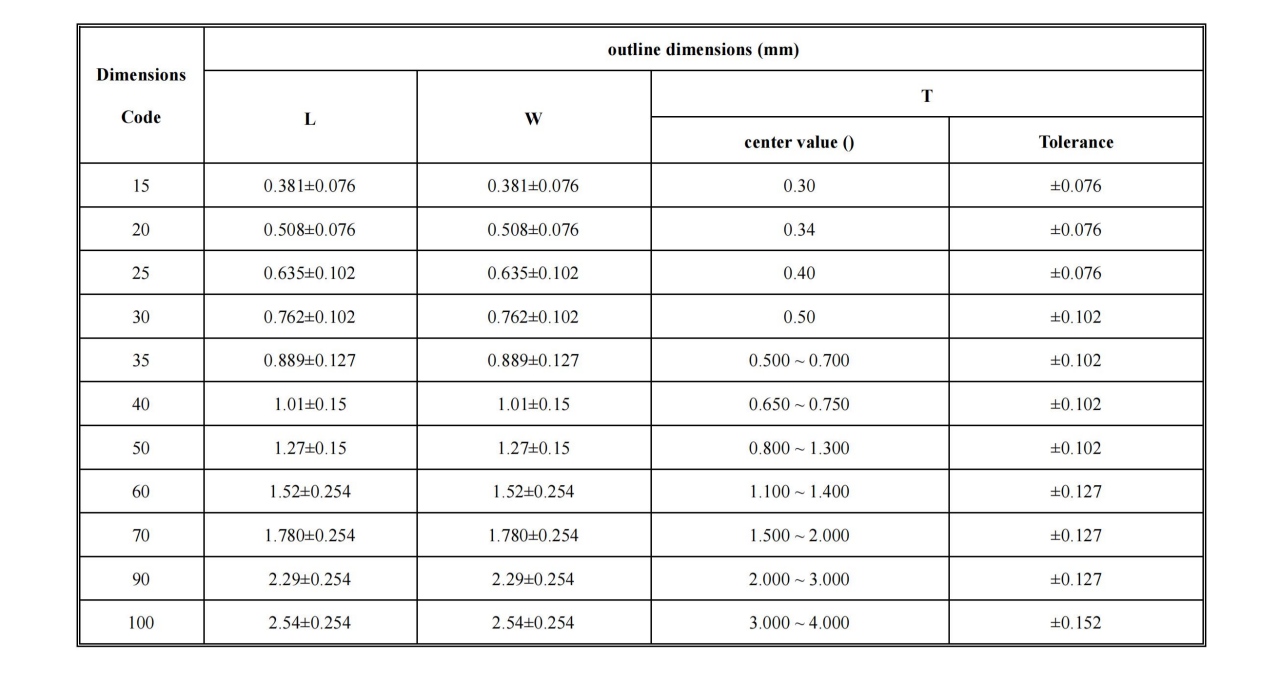

③ indicates dimensions: 35 indicates a microwave ceramic chip capacitor whose length and width use size code

35; see the size-code table for other codes.

④ indicates temperature coefficient/temperature characteristic: see the dielectric coding rule table (page 4).

⑤ indicates rated voltage: directly marked in volts (V).

⑥ indicates nominal capacitance: nominal capacitance is marked in picofarads (pF) with a three-digit code. The

first two digits are significant figures, and the last digit indicates the number of zeros. When nominal capacitance is

below 10 pF, the letter "R" indicates the decimal point: digits before R are the integer part and digits after R are the

decimal part. For example, "1R0" indicates 1.0 pF, "4R7" indicates 4.7 pF, and "R75" indicates 0.75 pF.

⑦ indicates capacitance tolerance: A: ±0.05 pF; B: ±0.1 pF; C: ±0.25 pF; D: ±0.5 pF; F: ±1.0%; G: ±2.0%; J:

±5.0%; K: ±10%; L: ±15%; M: ±20%; S: -20%~+50%; Z: -20%~+80%.

⑧ indicates electrode configuration: C = no margin on either side.

⑨ indicates metal film stack: P = TiW/Ni/Au; C = Cu/Ni/Au

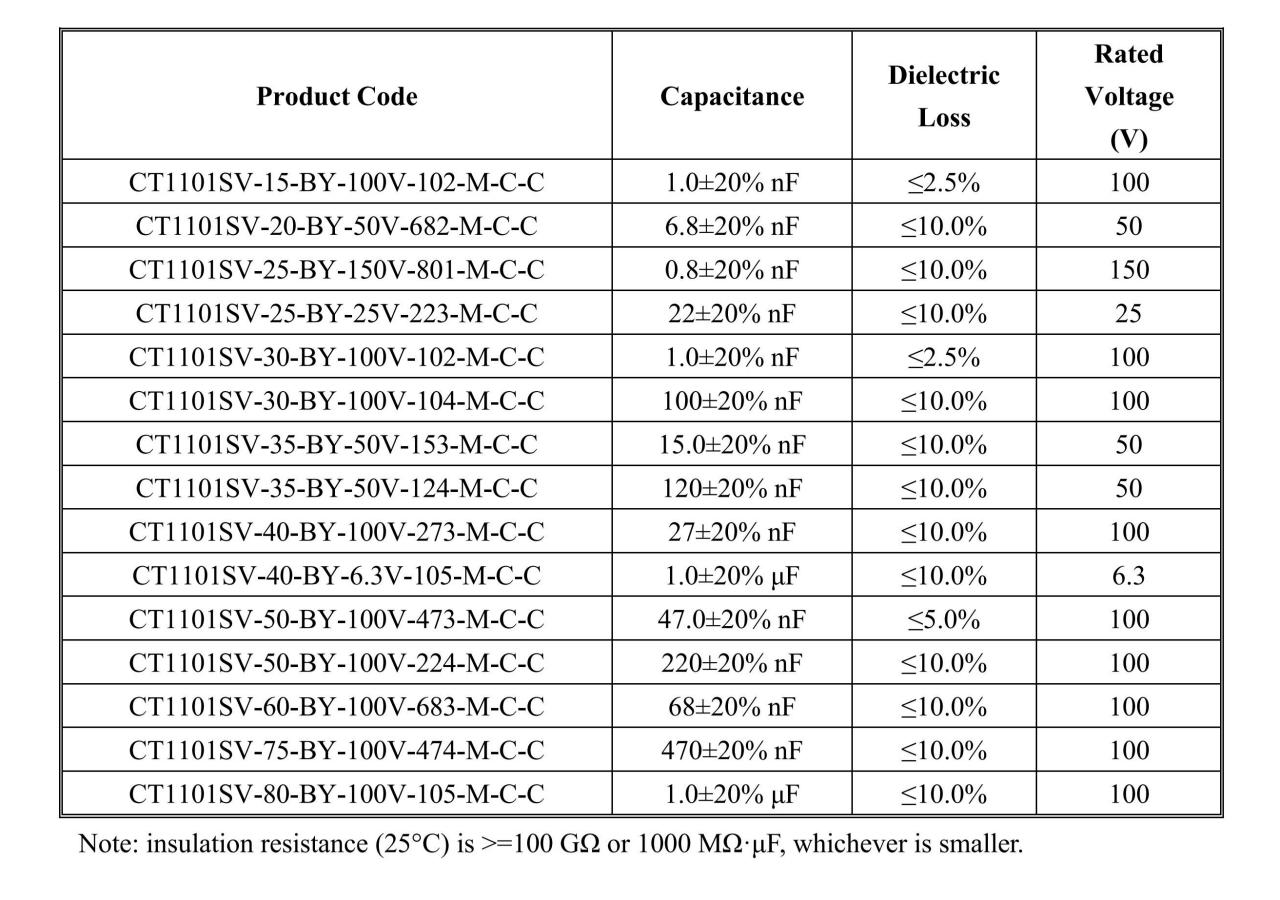

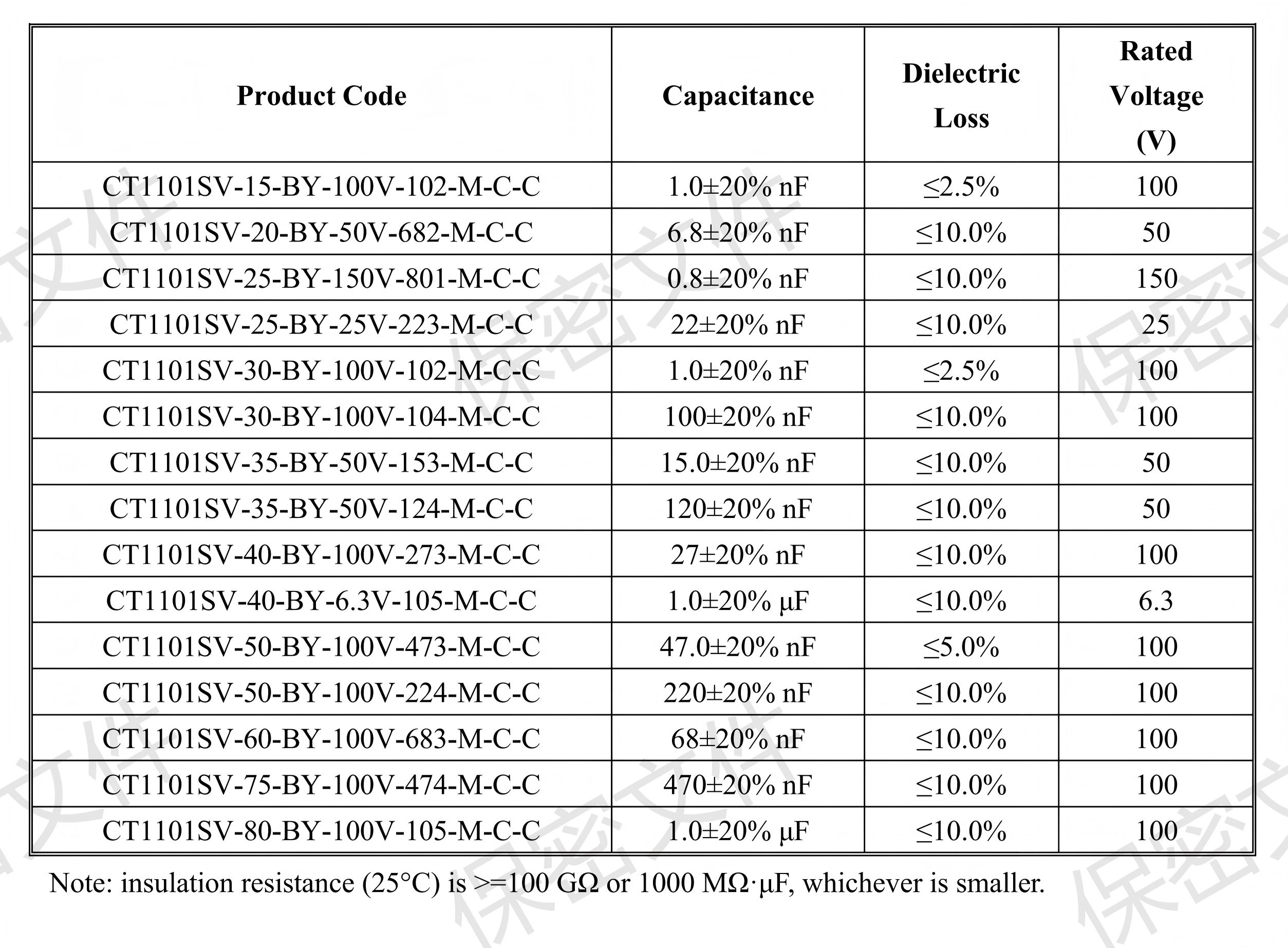

IV. Typical Products
