National Military Standard Array Microwave Ceramic Chip Capacitors (70pF-200pF, 50V)

Product Description

General specification is GJB2442-2021, detail specification is ZZR-Q/TJKJ20008-2019, CTK1101SA array-type single-layer chip ceramic fixed capacitor with failure-rate level, and standard number is JLCH61020095.

It features easy to mount, shorter lead length and high performance in IC assembly, low assembly complexity and low cost.

Capacitance :
70 pF ~ 200 pF
Voltage :
0V
Tolerance :
K: ±10%; M: ±20%
Size :
CTK1101SA30
Dielectric :
BY Microwave Ceramic
Grade :
National Military Standard
Lead Time :
8-12 weeks

Inquiry now

Product Details

I. Features

◼ General specification: GJB2442-2021;

◼ Detail specification: ZZR-Q/TJKJ20008-2019, CTK1101SA

array-type single-layer chip ceramic fixed capacitor with

failure-rate level;

◼ Standard number: JLCH61020095;

◼ Easy to mount;

◼ Shorter lead length and high performance in IC assembly;

◼ Low assembly complexity and low cost.

II. Product Coding Rules

The coding rules are the same as those for the national military standard general-purpose microwave ceramic chip

capacitor above.

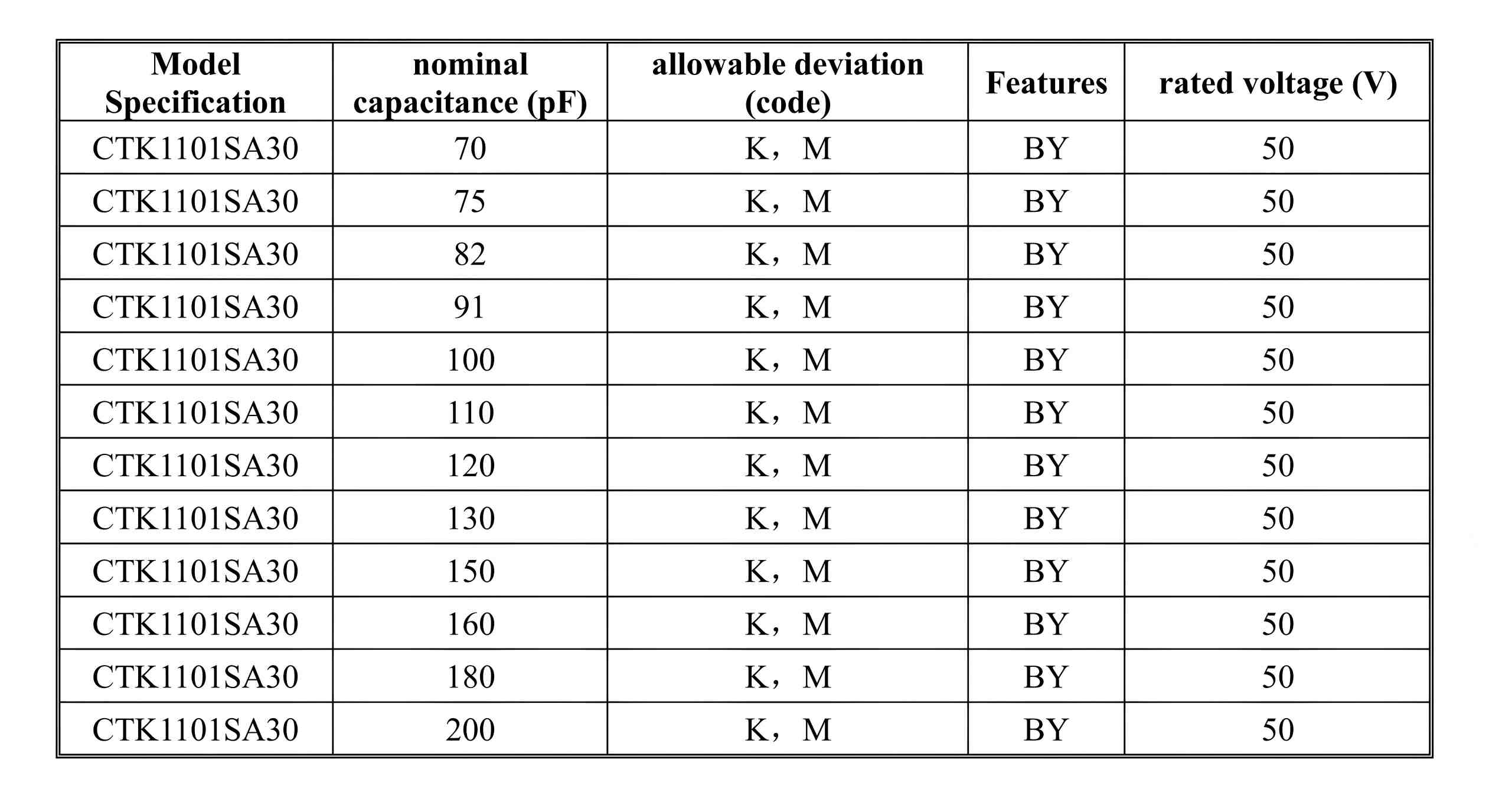

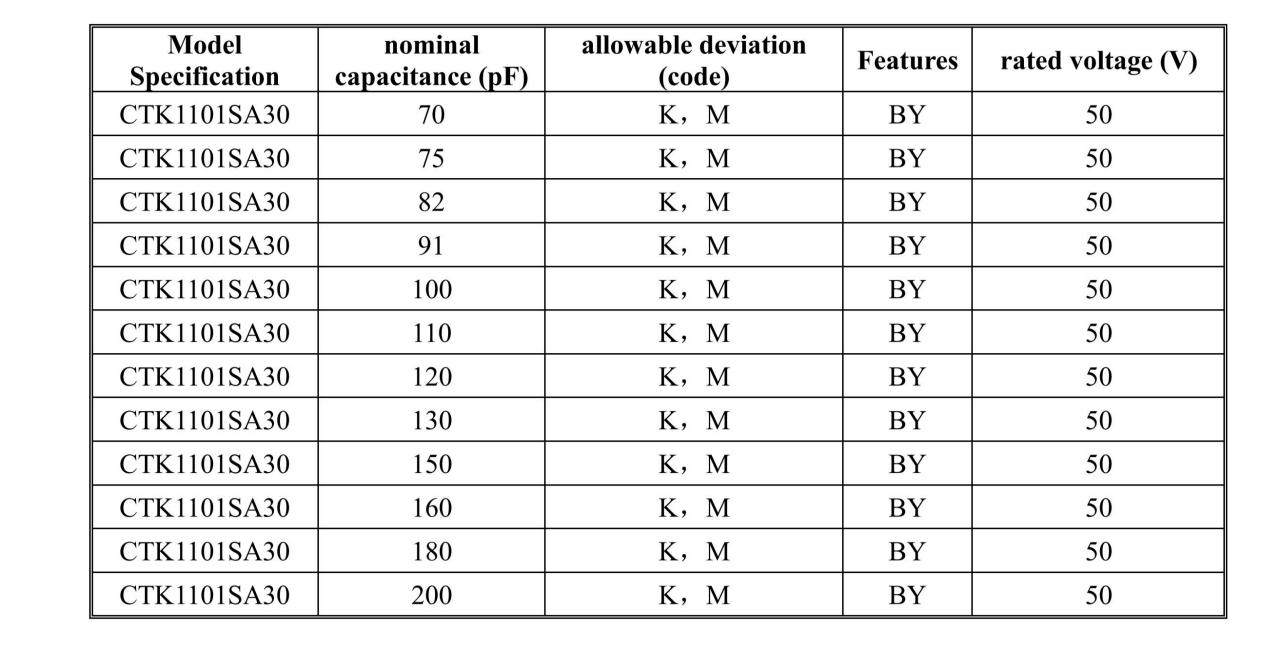

III. Representative Models of National Military Standard Array Microwave Ceramic Chip

Capacitors
