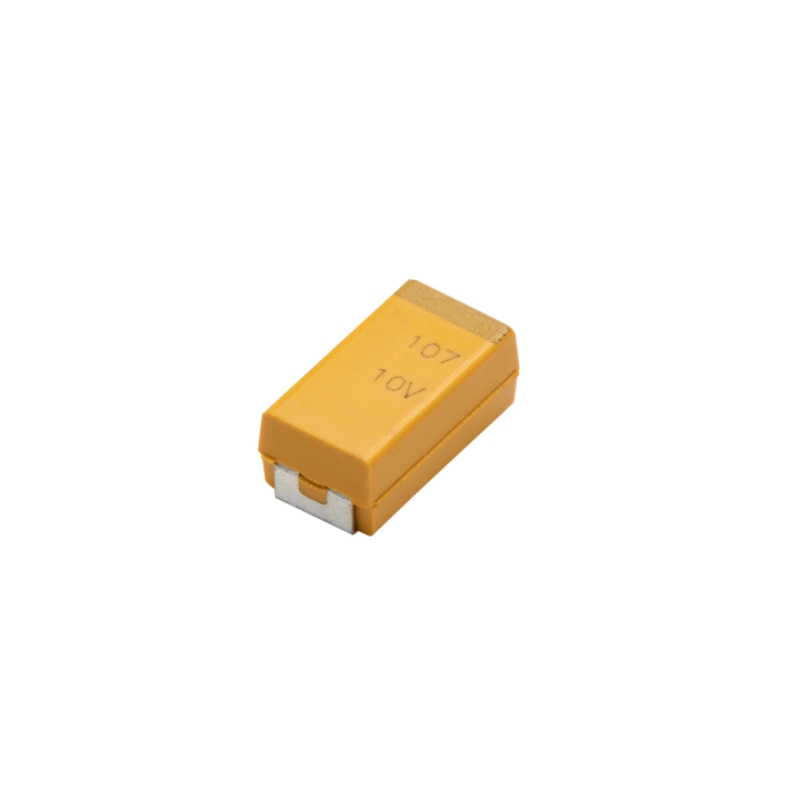

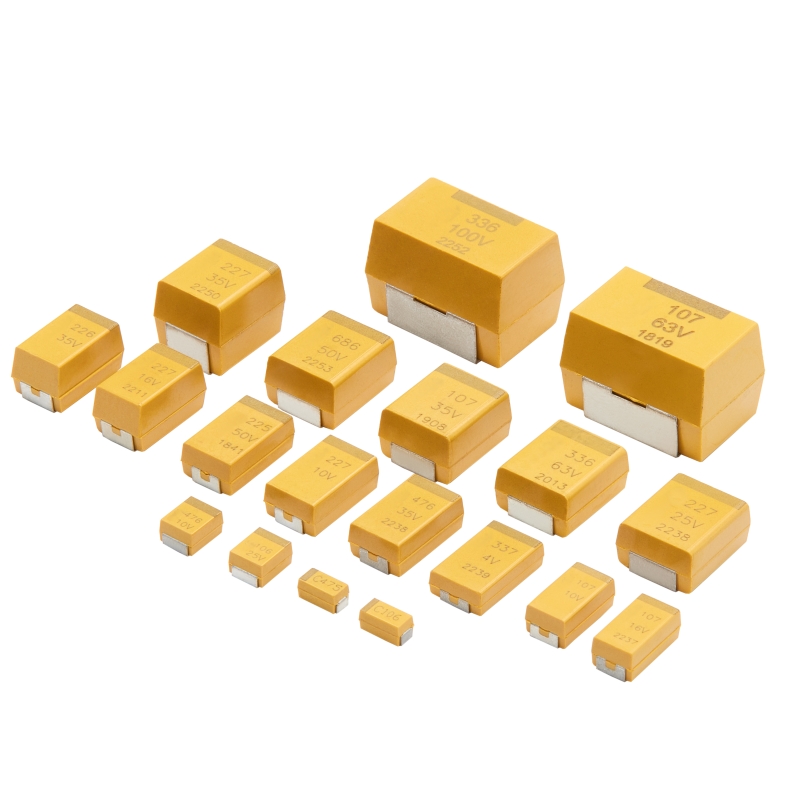

Polymer Tantalum Solid Electrolytic Chip Capacitor Case Size C

Polymer Tantalum Solid Electrolytic Chip Capacitor Case Size C

Lead-free termination, RoHS Compliant

  • Voltage :

    2.5 V~63 V
  • Size :

    A B C D D1 E F



Features

Extremely low ESR

Low leakage current

High frequency capacitance retention

Non-ignition failure mode

Operating temperature rang of -55℃ to +125℃

Moisture Sensitivity Level 3



Ordering Information

CA55

  D

   35V

— 22µF

  M

Series

Case size

Rated voltage

Capacitance

Capacitance tolerance

CA55

Polymer Tantalum Solid Electrolytic Chip Capacitors of High Reliability

A

B

C

D

D1

E

F

2.5V

4V

6.3V

10V

16V

20V

25V

35V

50V

63V

-

M=±20%



Dimensions











unit:mm

Case Size

L

W

H

S

W1

A

3.20±0.35

1.60±0.25

1.60±0.25

0.80±0.30

1.20±0.10

B

3.50±0.35

2.80±0.25

1.90±0.25

0.80±0.30

2.20±0.10

C

6.00±0.35

3.20±0.30

2.50±0.30

1.30±0.30

2.20±0.10

D

7.30±0.35

4.30±0.30

2.80±0.30

1.30±0.30

2.40±0.10

D1

7.30±0.35

4.30±0.30

2.00±0.30

1.30±0.30

2.40±0.10

E

7.30±0.35

4.30±0.30

4.10±0.30

1.30±0.30

2.80±0.10

F

7.30±0.35

6.10±0.30

3.80±0.30

1.30±0.30

3.80±0.10



Temperature Characteristic

Temperature Characteristic

-55

25

85

125

(ΔC/C)*

-20%~+10%

Initial value

-10%~+30%

-10%~+50%

Leakage Current

N/A

1=0.1*CR*UR or 5μA

(Whichever is larger)

10*I0

12.5*I0



Electrical Characteristic

Capacitance and DF are measured at 100Hz, 1V RMS with DC bias of 2.2V. Leakage Current is measured at rated voltage after 3 minutes, protective resistance of 1000Ωis connected in series with the capacitor in the measuring circuit.
