Hermetically Sealed High Energy Tantalum Capacitor Cylindrical Case C

Hermetically Sealed High Energy Tantalum Capacitor Cylindrical Case C

Termination: radial leaded

100% accelerated steady state aging

100% temperature stability

100% barometric pressure

Voltage rating of 10V-150V

Operating temperature range of -55 to +125

Features

Termination: radial leaded

100% accelerated steady state aging

100% temperature stability

100% barometric pressure

Voltage rating of 10V-150V

Operating temperature range of -55 to +125℃

Ordering Information

CAK36

   50V

1000µF

  M

   CD1

-A

Series

Rated voltage

Capacitance

Capacitance tolerance

Case size

Mounting Form

Tantalum Solid Electrolytic Chip Capacitors of High Reliability

10V

16V

25V

35V

50V

63V

80V

100V

125V

150V

-

K10%

M=±20%

-

-



Dimensions

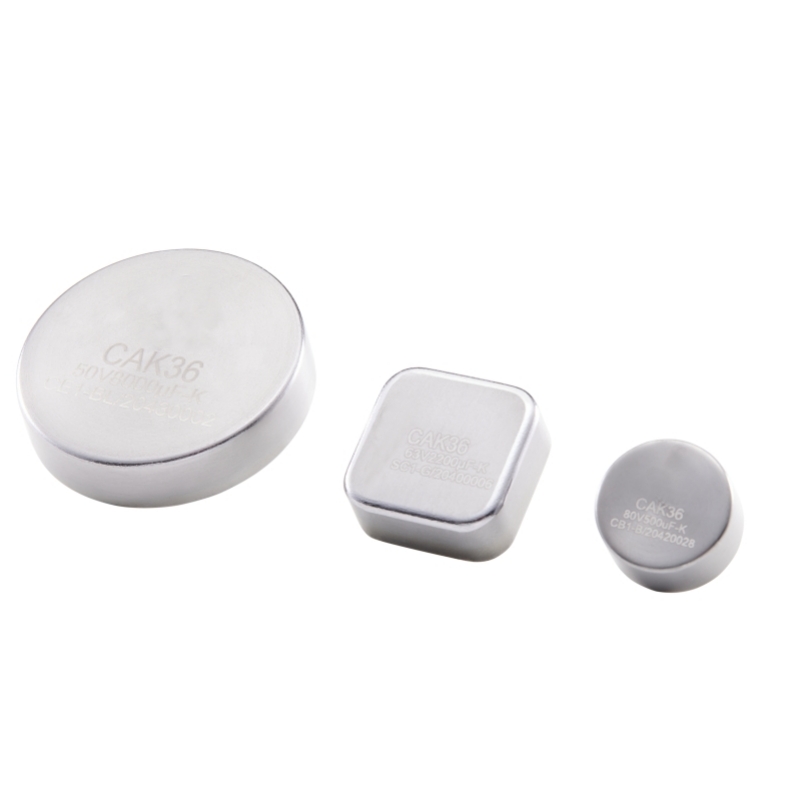

l  Cylindrical Case













Unit:mm

Case Size

D±0.50

H±0.50

L1min

L2±0.76

D1±0.38

Mounting Form

CA1

Φ12

8.00

7

5.84

4

A / B / C / C1

CA2

10.00

CA3

12.00

CB1

Φ16

8.00

7

5.84

5.08

A ( A1 / A2 ) / B / C / C1

CB2

10.00

CB3

12.00

CB4

16.00

CC1

Φ19

8.00

7

5.84

6

A / B / C / C1 / BL / CL

CC2

10.00

CC3

12.00

CC4

16.00

CC5

18.00

CC6

20.00

CD1

Φ22

8.00

7

5.84

7.5

A ( A1 / A2 ) / B / C / C1 / BL / CL

CD2

10.00

CD3

12.00

CD4

16.00

CD5

18.00

CD6

20.00

CE1

Φ35.5

8.00

7

5.84

10.16

A ( A1 / A2 / A3 ) / B / C / C1 / BL / CL

CE2

10.00

CE3

12.00

CE4

16.00

CE5

18.00

CE6

20.00

CE7

24.00

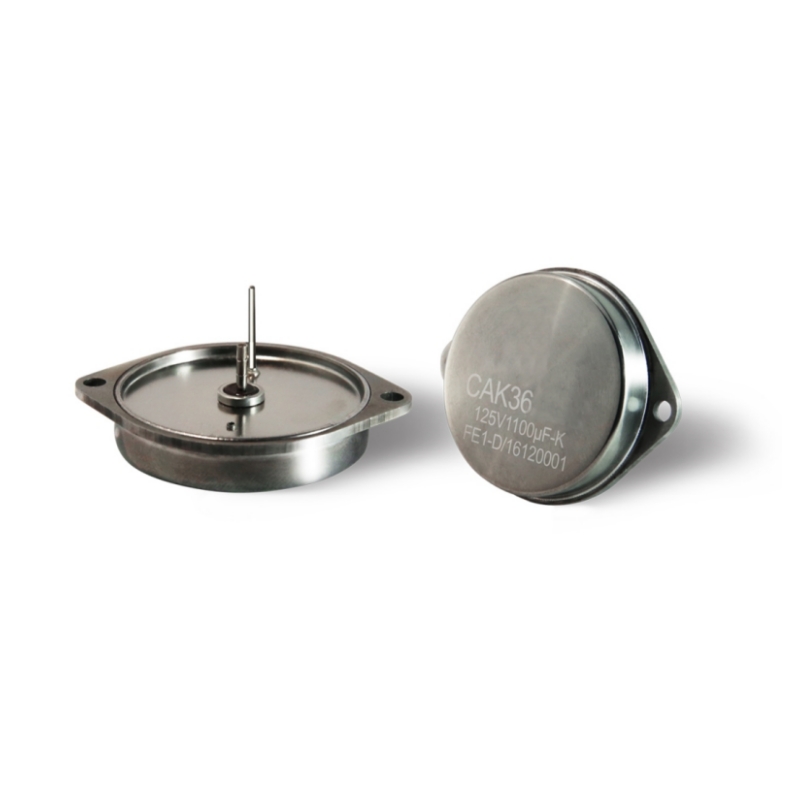

l  Flange Case













Unit:mm

Case Size

H±0.50

D±0.50

L1min

L2±0.76

D1±0.38

Mounting Form

FE1

8.00

Φ35.5

7

5.84

10.16

D/E

FE2

10.00

FE3

12.00

FE4

16.00

FE5

18.00

FE6

20.00

FE7

24.00

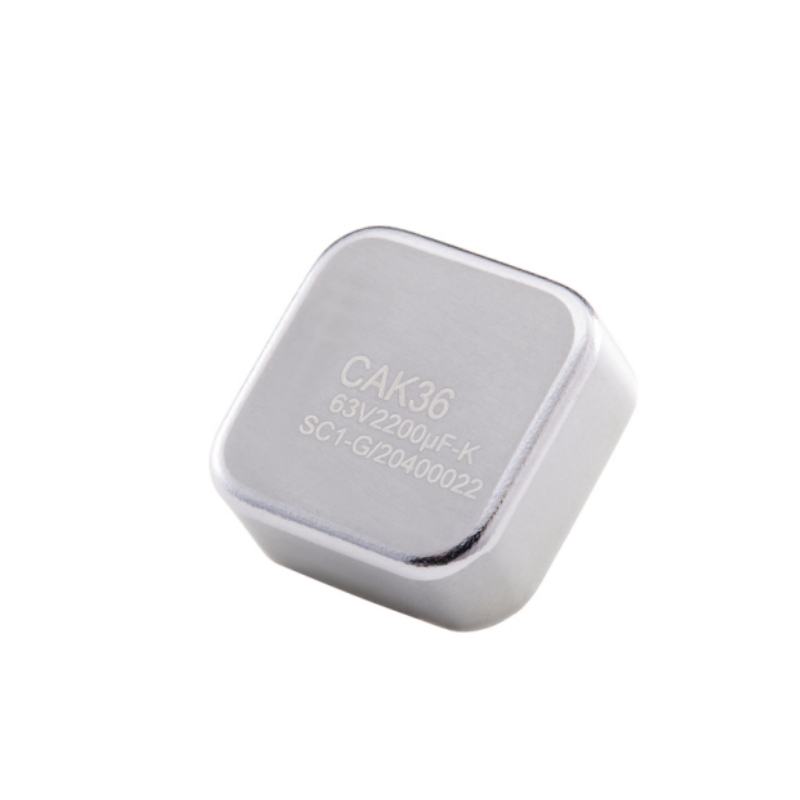

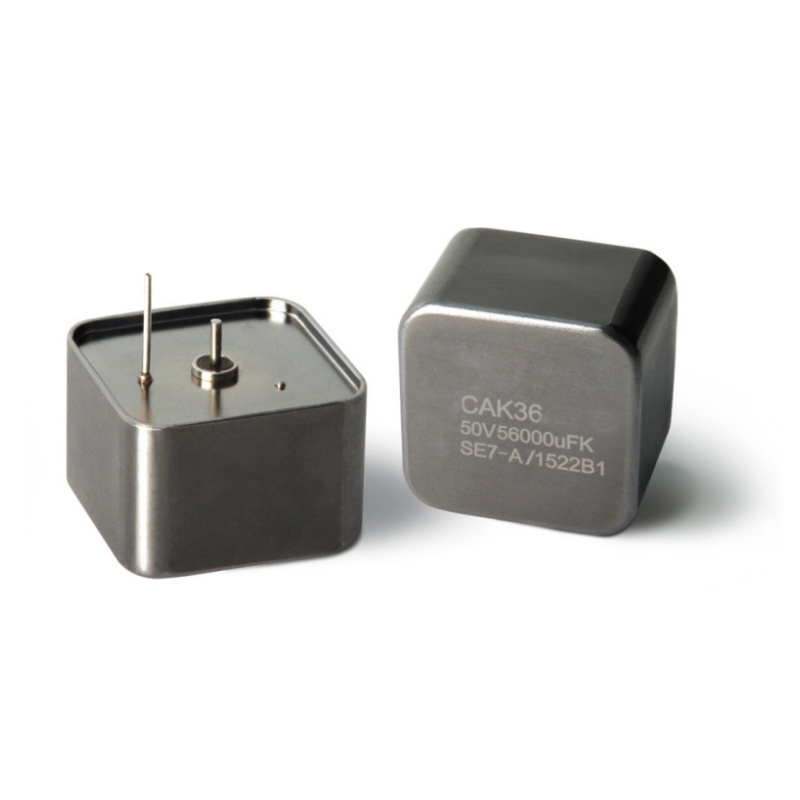

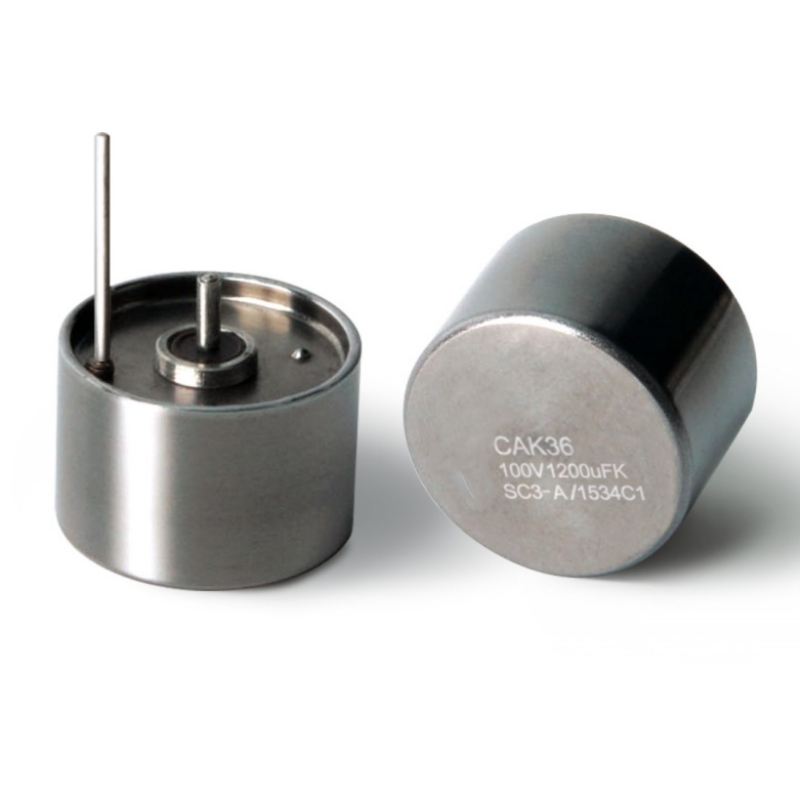

l  Square Case













Unit:mm

Case Size

D±0.50

H±0.50

L1min

L2±0.76

D1±0.38

Mounting Form

SB1

16.00

8.00

7.00

5.84

5.00

F(F1) / F3

SB2

10.00

SB3

12.00

SB4

16.00

SC1

20.00

8.00

7.00

5.84

6.00

F(F1) / F3 / G

SC2

10.00

SC3

12.00

SC4

16.00

SC5

18.00

SC6

20.00

SE1

35.50

8.00

7.00

5.84

10.16

F(F1) / F3 / F4 / G

SE2

10.00

SE3

12.00

SE4

16.00

SE5

18.00

SE6

20.00

SE7

24.00

Mounting Bracket











Unit:mm

Size

D±0.20

L±0.2

L1±0.2

H±0.2

W±0.2

Φ16

16.5

22

17

8/12/16

6.7

Φ22

22.5

28

23

8/12/16

9

Φ35.5

36.5

37

32

8/12/16

11.3

















Unit:mm

Size

D±0.20

L±0.2

L1±0.2

D1±0.2

D2±0.2

D3±0.2

S±0.2

Φ16

16.5

21

15

12

4.5

2.5

2.5

Φ22

22.5

28

21

18

5.5

3

3

Φ35.5

36.5

40

32

32

7

4

4





















Unit:mm

Size

D±0.20

L±0.2

L1±0.2

D1±0.2

D2±0.2

D3±0.2

R1±0.2

R2±0.2

S±0.2

20 x 20

20.5

30

24

16

5.5

3

2

4

2

35.5 x 20

36.5

47

39

32

7

4

4

6

3



ELECTRICAL CHARACTERISTICS

Capacitance and DF are measured at 100Hz, 1V RMS with DC bias of 2.2V. Leakage Current is measured at rated voltage after 3 minutes, protective resistance of 1000Ωis connected in series with the capacitor in the measuring circuit.



Storage

To maintain the solderability of terminal electrodes and to keep packaging materials in good condition, care must be taken to control temperature and humidity.

Recommended conditions

· Temperature : From -5℃ to 40

· Humidity : Below 60% RH

Even under ideal storage conditions, solderability of capacitors is deteriorated as time passes, so capacitors shall be used within 12 months from the time of delivery. lf exceeding the above period, please check solderability before using the capacitors.



Application

Typical applications include decoupling and filtering in industrial and automotive end applications such as DC/DC converters, portable electronics,telecommunications, and control uint.
