Hermetically Sealed High Energy Tantalum Capacitor Cylindrical Case B

Capacitor Tantalum High Energy Low Leakage

high energy tantalum capacitor low loss low leakage

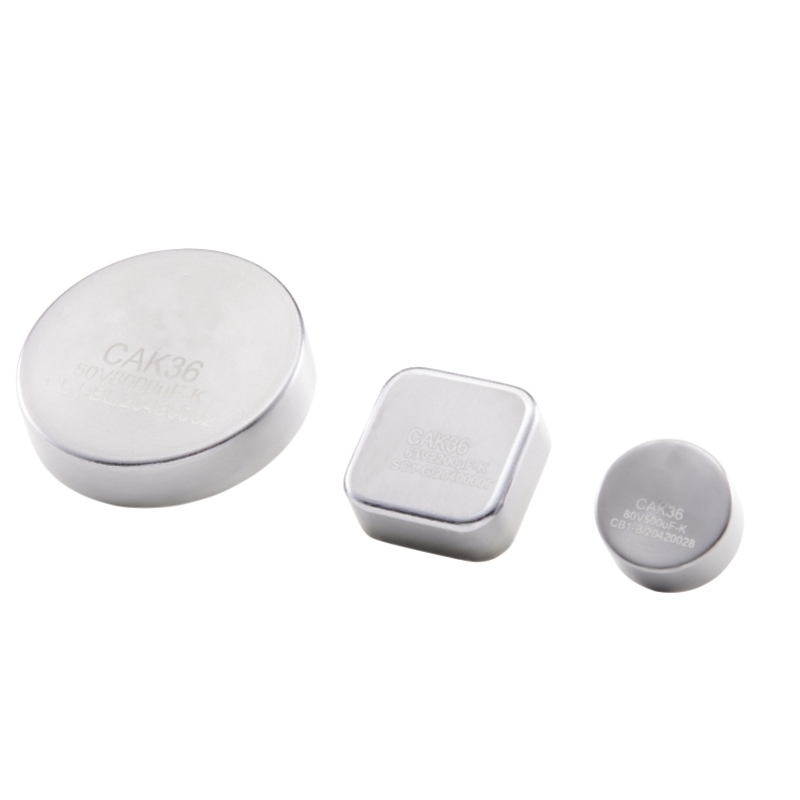

Hermetically Sealed High Energy Tantalum Capacitor Cylindrical Case B

Termination: radial leaded

100% accelerated steady state aging

100% temperature stability

100% barometric pressure

Voltage rating of 10V-150V

Operating temperature range of -55℃ to +125℃

Inquiry now

Product Details

Features

Moisture Sensitivity Level 3

Lead-free termination, RoHS Compliant

High energy and very high capacitance design

All tantalum sealed case

Ordering Information

CAK36

— 50V

— 1000µF

— M

— CD1

-A

Series

Rated voltage

Capacitance

Capacitance tolerance

Case size

Mounting Form

Tantalum Solid Electrolytic Chip Capacitors of High Reliability

10V

16V

25V

35V

50V

63V

80V

100V

125V

150V

K=±10%

M=±20%

Dimensions

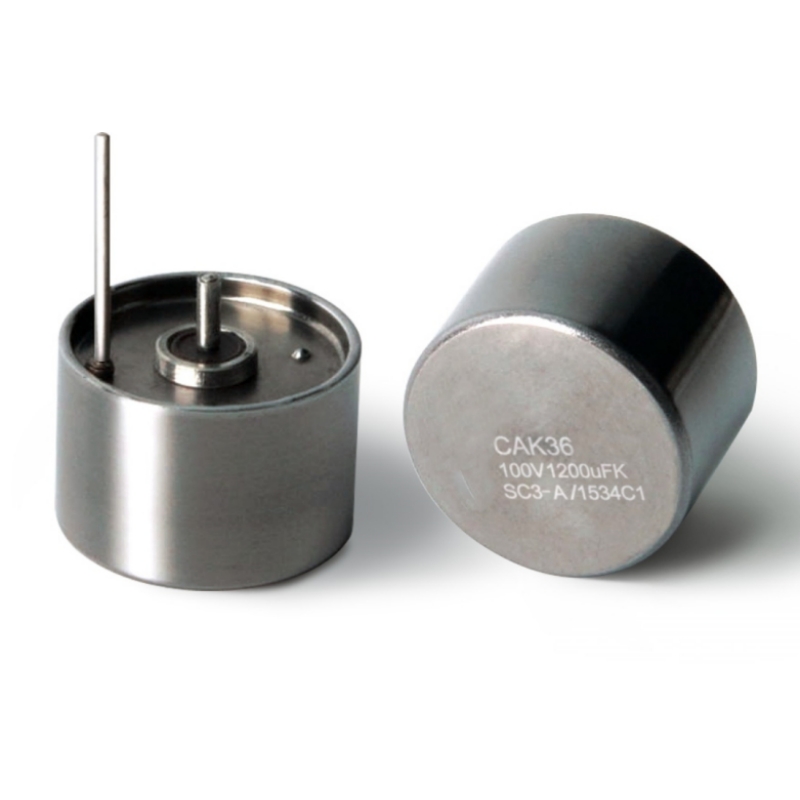

l Cylindrical Case

						Unit:mm
Case Size	D±0.50	H±0.50	L1min	L2±0.76	D1±0.38	Mounting Form
CA1	Φ12	8.00	7	5.84	4	A / B / C / C1
CA2		10.00
CA3		12.00
CB1	Φ16	8.00	7	5.84	5.08	A ( A1 / A2 ) / B / C / C1
CB2		10.00
CB3		12.00
CB4		16.00
CC1	Φ19	8.00	7	5.84	6	A / B / C / C1 / BL / CL
CC2		10.00
CC3		12.00
CC4		16.00
CC5		18.00
CC6		20.00
CD1	Φ22	8.00	7	5.84	7.5	A ( A1 / A2 ) / B / C / C1 / BL / CL
CD2		10.00
CD3		12.00
CD4		16.00
CD5		18.00
CD6		20.00
CE1	Φ35.5	8.00	7	5.84	10.16	A ( A1 / A2 / A3 ) / B / C / C1 / BL / CL
CE2		10.00
CE3		12.00
CE4		16.00
CE5		18.00
CE6		20.00
CE7		24.00

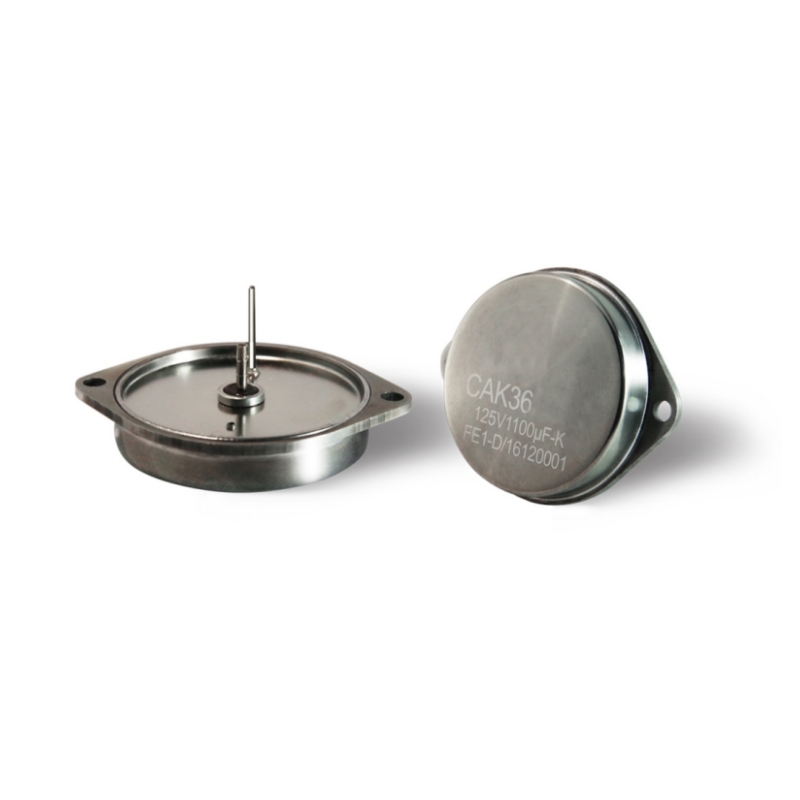

l Flange Case

						Unit:mm
Case Size	H±0.50	D±0.50	L1min	L2±0.76	D1±0.38	Mounting Form
FE1	8.00	Φ35.5	7	5.84	10.16	D/E
FE2	10.00
FE3	12.00
FE4	16.00
FE5	18.00
FE6	20.00
FE7	24.00

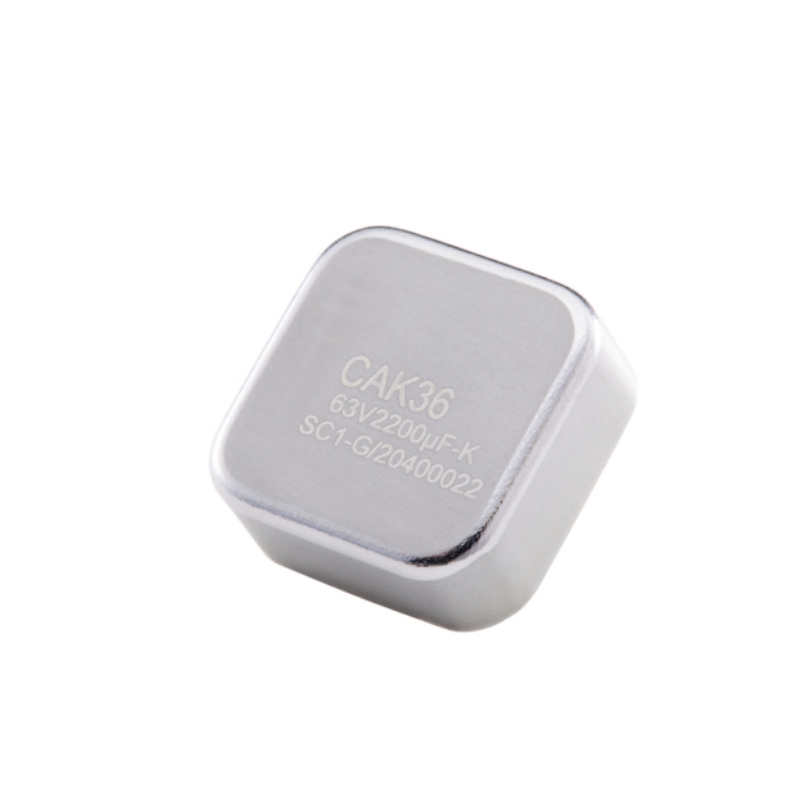

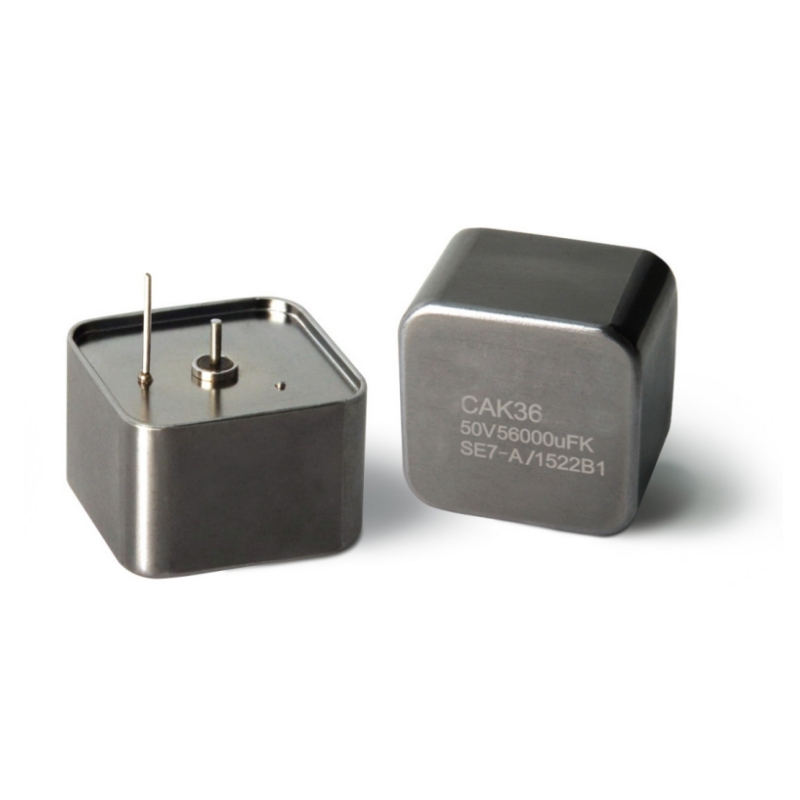

l Square Case

						Unit:mm
Case Size	D±0.50	H±0.50	L1min	L2±0.76	D1±0.38	Mounting Form
SB1	16.00	8.00	7.00	5.84	5.00	F(F1) / F3
SB2		10.00
SB3		12.00
SB4		16.00
SC1	20.00	8.00	7.00	5.84	6.00	F(F1) / F3 / G
SC2		10.00
SC3		12.00
SC4		16.00
SC5		18.00
SC6		20.00
SE1	35.50	8.00	7.00	5.84	10.16	F(F1) / F3 / F4 / G
SE2		10.00
SE3		12.00
SE4		16.00
SE5		18.00
SE6		20.00
SE7		24.00

Mounting Bracket

					Unit:mm
Size	D±0.20	L±0.2	L1±0.2	H±0.2	W±0.2
Φ16	16.5	22	17	8/12/16	6.7
Φ22	22.5	28	23	8/12/16	9
Φ35.5	36.5	37	32	8/12/16	11.3

							Unit:mm
Size	D±0.20	L±0.2	L1±0.2	D1±0.2	D2±0.2	D3±0.2	S±0.2
Φ16	16.5	21	15	12	4.5	2.5	2.5
Φ22	22.5	28	21	18	5.5	3	3
Φ35.5	36.5	40	32	32	7	4	4

									Unit:mm
Size	D±0.20	L±0.2	L1±0.2	D1±0.2	D2±0.2	D3±0.2	R1±0.2	R2±0.2	S±0.2
20 x 20	20.5	30	24	16	5.5	3	2	4	2
35.5 x 20	36.5	47	39	32	7	4	4	6	3

ELECTRICAL CHARACTERISTICS

Capacitance and DF are measured at 100Hz, 1V RMS with DC bias of 2.2V. Leakage Current is measured at rated voltage after 3 minutes, protective resistance of 1000Ωis connected in series with the capacitor in the measuring circuit.

Storage

To maintain the solderability of terminal electrodes and to keep packaging materials in good condition, care must be taken to control temperature and humidity.

Recommended conditions

· Temperature : From -5℃ to 40℃

· Humidity : Below 60% RH

Even under ideal storage conditions, solderability of capacitors is deteriorated as time passes, so capacitors shall be used within 12 months from the time of delivery. lf exceeding the above period, please check solderability before using the capacitors.

Application

Typical applications include decoupling and filtering in industrial and automotive end applications such as DC/DC converters, portable electronics,telecommunications, and control uint.

---------------------------
