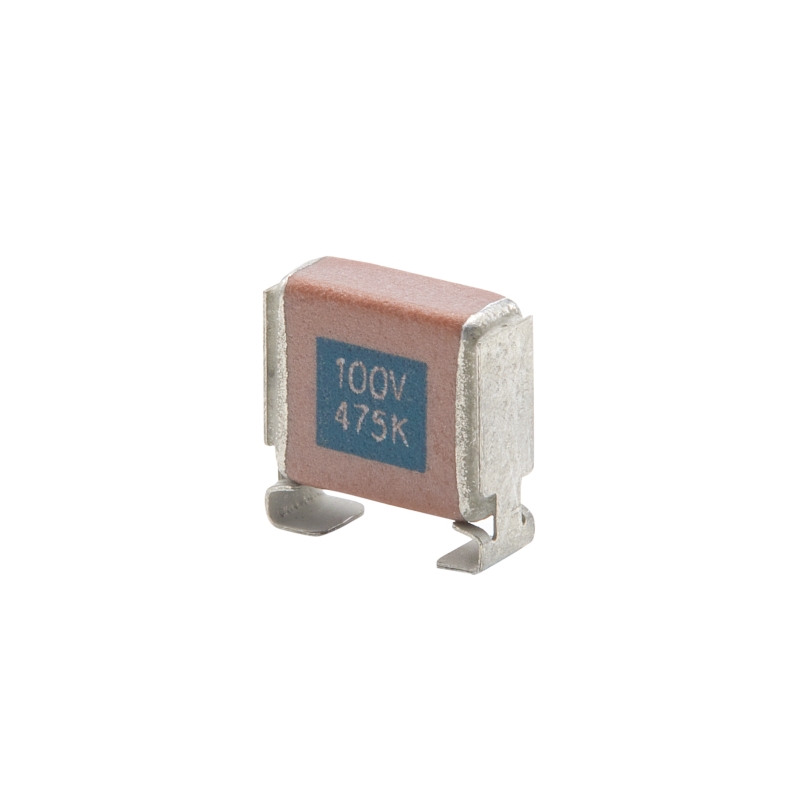

Non-Encapsulated Metal Bracket Ceramic Capacitors High Reliability



Compared with the aluminum electrolytic capacitors: higher insulation resistance and breakdown voltage, higher reliability; No polarity, easy installation; External pin, heat conduction; good heat dissipation, while reducing the impact of negative stress (environmental, mechanical stress, etc.), improve the reliability of use.



Advantages

Compared with the aluminum electrolytic capacitors: higher insulation resistance and breakdown voltage, higher reliability; No polarity, easy installation; External pin, heat conduction; good heat dissipation effectwhile reducing the impact of negative stress (environmental, mechanical stress, etc.), improve the reliability of use.



Features

Capacitance ranging from 0.1pF to 0.1μF

Voltage ratingof 25V~3600V

Size 0402 to 4040

Operating temperature range of-55℃ to+125℃



Ordering Information

CT49

01

BY

630V

105

M

J

2220*2

F

Series

Type

Dielectric

Rated voltage

Capacitance

Capacitance Tolerance

Termination Finish

Case Size

Packaging

CC49

Class I

CT49:

Class II

01:

Horizontally stacked



04:

Vertically stacked

C0G

BY

X5R

X7R

X7T

4v 6.3v 10v

16v 25v 35v

50v 100v 200v

250v 500v 630v

1kv 2kv 3kv

Refer to Capacitance and Rated Voltage Range

K10%

M=±20%

J

L

2220:

The chip size

*2:

2 layers

F=packaging



Dimensions







CR Unit: μF

Characteristics

Dissipation Factor

Dielectric Strength

Insulation Resistance 25

C0G

tgδ0.15%

UR<500V  2.5UR

UR=500V630V  1.5UR

UR≥1000V  1.2UR

IR100/CR   MΩ

BY

UR≤50V , tgδ≤500*10-4

50V<UR≤3000V, tgδ250*10-4

X7S

X5R

UR≤50V , tgδ≤1000*10-4

50V<UR≤3000V, tgδ250*10-4

X7T



Dimensions

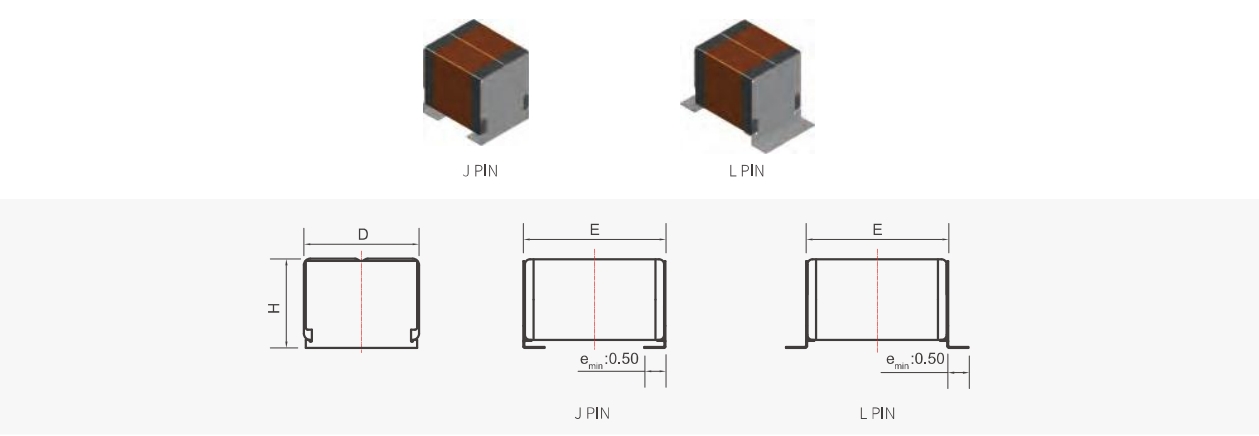

· 01 type: horizontally stacked









Unit:mm

Size Code

D

E

Hmax

1206*1

1.80±0.30

3.70±0.40

3.00

1206*2

1.80±0.30

3.70±0.40

5.00

1210*1

2.80±0.30

3.70±0.40

4.00

1210*2

2.80±0.30

3.70±0.40

7.00

1812*1

3.30±0.40

4.90±0.40

4.50

1812*2

3.30±0.40

4.90±0.40

8.00

2220*1

5.10±0.40

6.00±0.50

5.50

2220*2

5.10±0.40

6.00±0.50

10.00

2225*1

6.80±0.40

6.00±0.40

5.50

2225*2

6.80±0.40

6.00±0.40

9.50

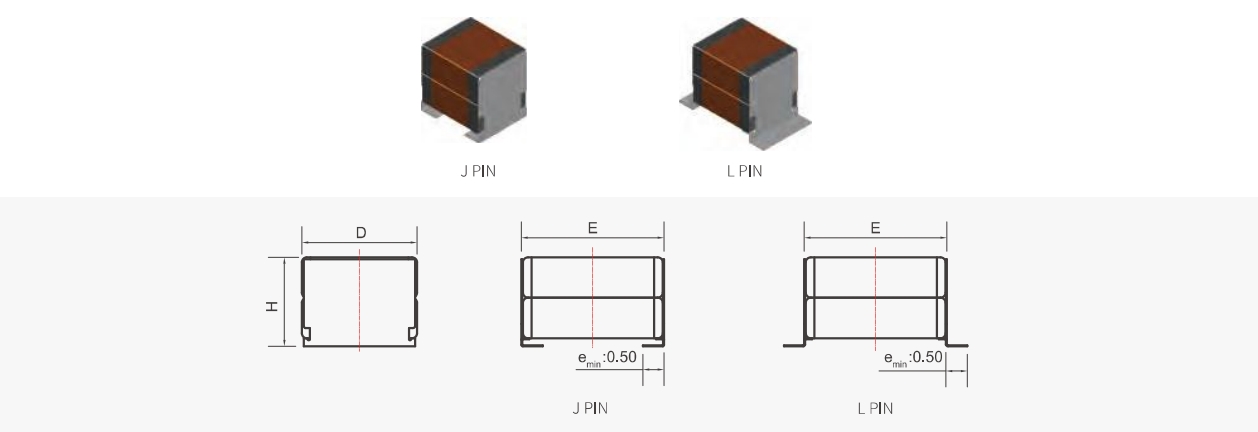

· 04 type: vertically stacked









Unit:mm

Size Code

Dmax

E

H

1206*2

4.00

3.70±0.40

3.00±0.30

1210*2

6.00

3.70±0.40

3.65±0.30

1812*2

7.00

4.90±0.40

4.20±0.40

2220*1

4.50

6.00±0.50

6.00±0.40

2220*2

9.00

6.00±0.50

6.00±0.40

2220*1

13.50

6.00±0.50

6.00±0.40

2225*3

14.00

6.00±0.40

5.50±0.40



Applications

Applications include RF power amplifiers and low noise amplifiers.
