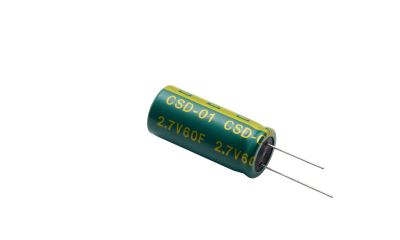

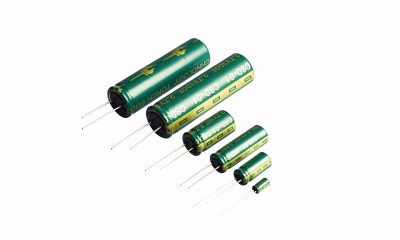

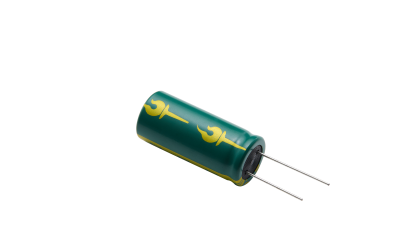

Capacitance: 0.1F ~ 120F
Rated voltage: 2.7V
Features
Low ESR, high power density
Long cycle life
Suitable for quick charge and discharge
Customization accepted
Ordering Information
|
CSD01 |
MT |
2R7 |
305 |
K |
C05 |
Y |
T |
— M |
|
Series |
Temperature characteristics |
Rated voltage |
Capacitance (µF) |
Capacitance tolerance |
Size code |
Wire form |
Packaging |
/ |
|
CSD01 |
CP: -25℃~70℃ MT: -40℃~70℃ LT: -50℃~65℃ |
2R7=2.7V 3R0=3.0V |
First two digits represent significant figures. Third digit specifies number of zeros. Example: 305=3000000µF =3.0F |
J=±5% K=±10% M=±20% N=±30% V=-20%~+80% |
- |
Y=CP wire |
T=bulk |
Internal code standard |

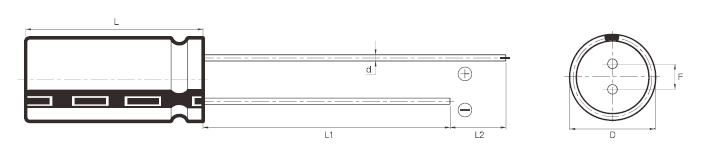

Dimensions
|
Case Size |
Unit: mm |
||||||
|
L |
L1 |
L2 |
D |
F |
d |
||
|
C02 |
7.50±1.00 |
≥15 |
≥4 |
5.00±0.50 |
1.85±0.35 |
0.45±0.10 |
0.30±0.10 |
|
C03 |
12.00±1.50 |
≥15 |
≥4 |
6.30±0.50 |
2.65±0.35 |
0.60±0.15 |
0.66±0.20 |
|
C04 |
12.00±1.50 |
≥15 |
≥4 |
8.00±0.80 |
3.30±0.35 |
0.60±0.15 |
0.90±0.35 |
|
C05 |
17.00±1.50 |
≥15 |
≥4 |
8.00±0.80 |
3.50±0.35 |
0.60±0.15 |
1.35±0.30 |
|
C06 |
20.00±2.00 |
≥15 |
≥4 |
8.00±0.80 |
3.50±0.35 |
0.60±0.15 |
1.50±0.30 |
|
C07 |
20.00±2.00 |
≥15 |
≥4 |
10.00±0.80 |
4.75±0.35 |
0.60±0.15 |
2.25±0.50 |
|
C08 |
34.00±2.00 |
≥15 |
≥4 |
16.00±0.80 |
7.50±0.75 |
0.80±0.15 |
8.10±0.50 |
|
C09 |
25.00±2.00 |
≥15 |
≥4 |
10.00±0.80 |
5.00±0.50 |
0.60±0.15 |
3.00±0.80 |
|
C10 |
30.00±2.00 |
≥15 |
≥4 |
10.00±0.80 |
5.00±0.50 |
0.60±0.15 |
3.10±0.60 |
|
C11 |
26.00±2.00 |
≥15 |
≥4 |
16.00±0.80 |
7.50±0.75 |
0.80±0.15 |
7.80+1.50 |
|
C12 |
31.00±2.00 |
≥15 |
≥4 |
16.00±0.80 |
7.50±0.75 |
0.80±0.15 |
8.50±1.00 |
|
C14 |
42.00±2.00 |
≥15 |
≥4 |
18.00±0.80 |
7.50±0.75 |
0.80±0.15 |
13.00±1.50 |
|
C15 |
42.00±2.00 |
≥15 |
≥4 |
18.00±0.80 |
7.50±0.75 |
0.80±0.15 |
14.00±1.80 |
|
C16 |
42.00±2.00 |
≥15 |
≥4 |
18.00±0.80 |
7.50±0.75 |
0.80±0.15 |
15.00±2.00 |
|
C40 |
60.00±2.00 |
≥15 |
≥4 |
18.00±0.80 |
7.50±0.75 |
0.80±0.15 |
20.00±2.00 |
|
C17 |
43.00±2.00 |
≥15 |
≥4 |
22.00±0.80 |
10.00±1.00 |
1.00±0.15 |
17.90±2.30 |
|
C19 |
21.00±2.00 |
≥15 |
≥4 |
12.50±0.80 |
5.00±0.50 |
0.60±0.15 |
3.50±0.80 |
|
C20 |
26.00±2.00 |
≥15 |
≥4 |
12.50±0.80 |
5.00±0.50 |
0.60±0.15 |
4.05±0.80 |
|
C25 |
25.00±2.00 |
≥15 |
≥4 |
8.00±0.80 |
3.50±0.35 |
0.60±0.15 |
2.00±0.40 |
|
C34 |
30.00±2.00 |
≥15 |
≥4 |
12.50±0.80 |
5.00±0.50 |
0.60±0.15 |
5.20±0.80 |
|
C36 |
47.00±2.00 |
≥15 |
≥4 |
12.50±0.80 |
5.00±0.50 |
0.60±0.15 |
7.50+1.20 |
