Operating temperature range of -40°C to +70°C
Store more energy
LOW ESR for high power density
Long cycle life
Customization Accepted
Ordering Information
|
CSM01 |
RP |
48R |
164 |
M |
ST1 |
W |
T |
— M |
|
Series |
Temperature characteristics |
Rated voltage |
Capacitance (µF) |
Capacitance tolerance |
Size code |
Wire form |
Packaging |
/ |
|
CSM01-B |
GP (General Product) RP (Resin Package) SC (Specially Customized) |
48R=48V |
First two digits represent significant figures. The third digit specifies number of zeros. Example: 305=3000000µF =3.0F |
K=±10% M=±20% N=±30% Q=-20%~50% V=-20%~80% |
- |
X Y Z W |
F=Waffle T=bulk |
Internal code standard |

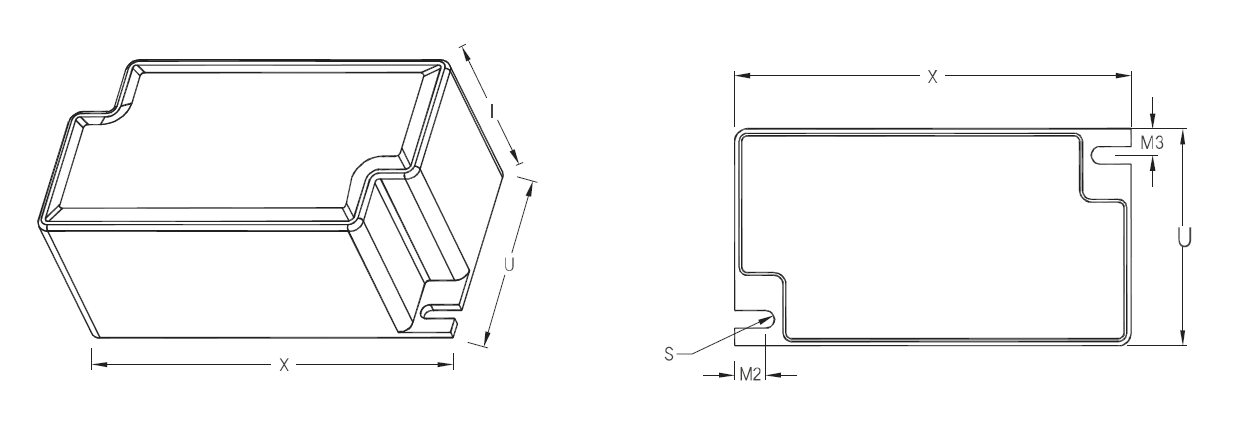

Dimensions
|
Size Code |
Case Size(mm) |
||||||
|
W |
T |
H |
L1 |
L2 |
R |
|
|
|
ST1 |
70.2±0.5 |
36.8±0.5 |
27±0.5 |
5.5±0.5 |
3.8±0.5 |
2.0±0.2 |
|
|
ST2 |
84.5±0.5 |
43.9±0.5 |
36±0.5 |
7.5±0.5 |
6.0±0.5 |
2.0±0.2 |
|
|
ST3 |
92.8±0.5 |
52.2±0.5 |
42±0.5 |
7.5±0.5 |
6.0±0.5 |
2.0±0.2 |
|
|
ST4 |
100.8±0.5 |
58.7±0.5 |
52±0.5 |
10.5±0.5 |
6.0±0.5 |
2.0±0.2 |
|
|
ST5 |
100.8±0.5 |
58.7±0.5 |
52±0.5 |
10.5±0.5 |
6.0±0.5 |
2.0±0.2 |
|
Application
Typical applications include hybrid battery packs, UPS & telecom systems, hold up power, high pulse current applications.
-----------------------
