Operating temperature range of -40°C to +70°C
Store more energy
LOW ESR for high power density
Long cycle life
Customization Accepted
Ordering Information
|
CSM01 |
RP |
5R5 |
104 |
M |
S02 |
Y |
F |
— M |
|
Series |
Temperature characteristics |
Rated voltage |
Capacitance (µF) |
Capacitance tolerance |
Size code |
Wire form |
Packaging |
/ |
|
CSM01-A |
GP (General Product) RP (Resin Package) SC (Specially Customized) |
5R5=5.5V |
First two digits represent significant figures. The third digit specifies number of zeros. Example: 305=3000000µF =3.0F |
K=±10% M=±20% N=±30% Q=-20%~50% V=-20%~80% |
- |
X Y Z W |
F=Waffle T=bulk |
Internal code standard |

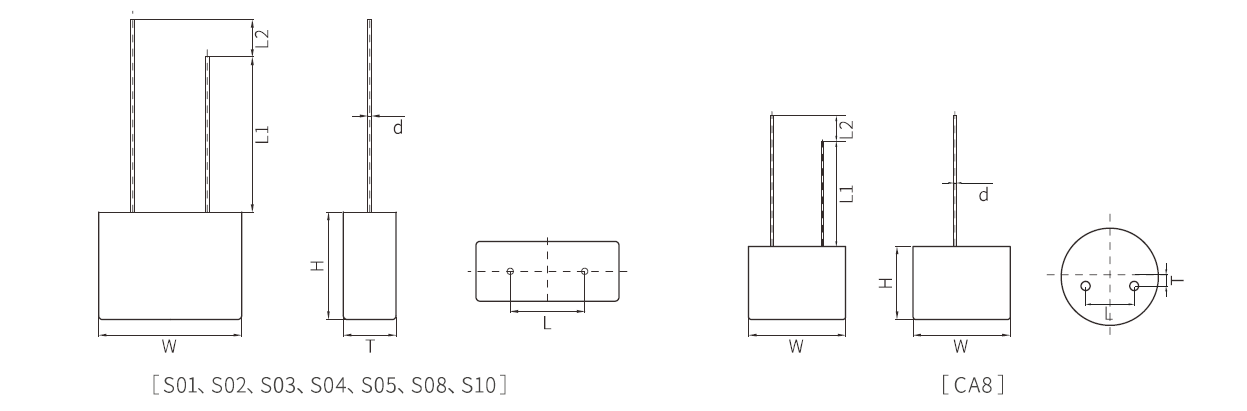

Dimensions
|
Size Code |
Case Size(mm) |
||||||
|
L |
L1 |
L2 |
W |
H |
T |
d |
|
|
S02 |
7.50±0.5 |
≥15 |
≥4 |
12.0±0.5 |
13.5±0.5 |
6.6±0.10 |
0.5±0.1 |
|
S03 |
7.0±0.5 |
≥15 |
≥4 |
13.0±0.5 |
12.5±0.5 |
6.3±0.15 |
0.4±0.1 |
|
S04 |
12.0±0.5 |
≥15 |
≥4 |
18.5±0.5 |
16.5±0.5 |
10.0±0.15 |
0.6±0.1 |
|
S05 |
12.00±0.5 |
≥15 |
≥4 |
18.5±0.5 |
21.0±0.5 |
10.0±0.15 |
0.6±0.1 |
|
S08 |
36.9±0.5 |
≥15 |
≥4 |
46.3±0.5 |
17.4±0.5 |
10.3±0.15 |
0.6±0.1 |
|
S10 |
15.5±0.5 |
≥15 |
≥4 |
22.8±0.5 |
25.0±0.5 |
12.4±0.15 |
0.6±0.1 |
|
CA8 |
5.0±0.5 |
≥15 |
≥4 |
9.3±0.5 |
9.3±0.5 |
0.6±0.15 |
0.4±0.1 |
Application
Typical applications include hybrid battery packs, UPS & telecom systems, hold up power, high pulse current applications.
-----------------
