Capacitance :
0.5pF to 0.47μFVoltage :
25V - 200VSize :
0201 to 2225Dielectric :
C0GFeatures

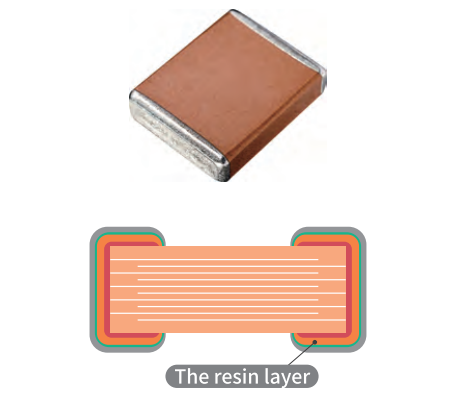

Add a flexible layer of resin electrode to the end electrode, able to absord the external stress, inhibit the crack.
One extra layer of resin electrode at the end electrode as a flexible layer.
Product Applications
Suitable for switching power supplies, telecommunication base stations, aluminum oxide substrate circuit applications, circuit applications that require high resistance to bending of components.
Class 1: Suitable for circuit resonance loops, high frequency coupling, high frequency amplifiers, low noise circuits, high frequency bypass, and circuits requiring low loss, high capacitor stability and high insulation resistance.
Class 2: Suitable for circuit filtering, bypassing, low frequency coupling circuits.
Ordering Information
| CT41G | 1206 | 2R1 | 100V | 105 | K | F | B |
| Series | Case size | Dielectric | Rated voltage | Capacitance | Capacitance tolerance | Termination finish | Internal electrode |
|
CC41: Class l CT41G: Class ll |
0402 0603 0805 1206 |
CG(Class l) 2R1(Class ll) 2C1(Class ll) |
25V 50V 100V 250V 500V |
Refer to Capacitance and Rated Voltage Range |
C=±0.25pF D=±0.5 pF J=±5% K=±10% M=±20% |
F | B |
Dimensions
|
Appearance |
Size Code |
0402 |
0603 |
0805 |
1206 |
1210 |
|
|
L |
1.00±0.20 |
1.60±0.20 |
2.00±0.30 |
3.2±0.3 |
3.20±0.30 |
|
W |
0.50±0.20 |
0.80±0.20 |
1.25±0.20 |
1.6±0.3 |
2.50±0.30 |
|
|
Tmax |
0.70 |
1.00 |
1.45 |
1.90 |
2.80 |
|
|
t |
0.25±0.10 |
0.35±0.25 |
0.50±0.25 |
0.50±0.35 |
0.60±0.30 |
Electrical Characteristics
| Characteristics | Dissipation Factor(CR Unit: pF) | Dielectric Strength | Insulation Resistance 25℃ | Operating Temperature Range |
| CG |
CR≤30pF tgδ≤1.5/(400+20CR) CR＞30pF tgδ≤0.15% |
UR<200V 2.5UR 250V≤UR≤630V 1.5UR |
10GΩ 500MΩ·μF, whichever is less Note: UR≥250V, 10GΩ OR 100MΩ·μF, whichever is less |
-55℃ to ～125℃ |
| 2R1 |
UR<100V tgδ≤5% 100V≤UR tgδ≤3% |
10GΩ 500MΩ·μF, whichever is less Note: UR≤16V&UR≥250V, 10GΩ OR 100MΩ·μF, whichever is less |
||
| 2C1 | tgδ≤10% | 10000MΩ OR 100MΩ·μF, whichever is less |
Capacitance ranging from 0.1 F to 3300uF Voltage ratings of 6V-500V Operating temperature range: X7R: -55℃~125℃ X5R: -55℃~85℃ Epoxy molded, high physical strength Tin/Lead solder plated (4% Pb minimum) 100% temperature cycling 100% accelerated steady state aging
Read More
Lead-free terminations, RoHS and Reach Compliant
Read More
Lead-free terminations, RoHS and Reach Compliant
Read More
Lead-free terminations, RoHS and Reach Compliant
Read More
The Torch CC4 Series C0G Capacitor is a premium radial lead type capacitor engineered for applications requiring high stability and low loss. Utilizing Class I dielectric materials, this C0G ceramic capacitor delivers exceptional temperature compensation (-55℃ to +125℃) with virtually no capacitance variation over time or voltage. Available in standard and custom radial lead configurations, it is the ideal choice for industrial control, medical care, and precision electronic circuits.
